AHN22112
| 制造商 | Panasonic Corporation |
| 描述 | General Purpose Relays Plug-in DC12V w/ LED 2 Form C, 12VDC RELAY GEN PURPOSE DPDT 5A 12V Electromechanical Relay DPDT 5A 12VDC 270Ohm Plug-In General Purpose Relay Coil Voltage: 12 VDC Contact Configuration: 2C DPDT Current: 5 Amps Mounting: Plug-In Operating Function: Single Side Stable |
| 分类 |
商业参数
| 其他名称 | 255-1512 | 产品类别 | General Purpose Relays |
| 标准包装数量 | 50 | 工厂包装数量 | 50 |
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 转速 | 20 cpm (at max. rating) | 电流 | 5 Amps |
| 线圈类型 | Single Side Stable | 频率 | 5A 250V AC, 5A 30V DC |
| 操作方式 | With LED indication | 线圈功率 | 530 mW |
| 线圈电流 | 44.4mA | 释放时间 | 5ms |
| 额定输出功率 | 1,250 VA, 150W | 线圈电阻 | 270 Ohms |
| 吸合电压 | 8.4 VDC | 额定电压值 | 20.4 VDC |
| 供电电压 | 12 V | 开关电压 | 250VAC, 30VDC - Max |
| 接触电阻 | 50 mohm | Vgs(th)（最大）@ Id | 1.2 VDC |
| 开关电流 | 1V 1 mA DC | 击穿电压 | 3,000 Vrms for 1 min. (2 Form C type only) |
| 最大额定电流 | 5 A | 触点电压（最大） | 5,000 Vrms for 1 min. |
| 绝缘电阻 | Min. 1,000 Mohm at 500 V DC | 最大压差 | 1.2 VDC |
| 平均正向功率 | 530 mW | 集电极-发射极饱和电压（最大）@ Vge, Ic | 8.4 VDC |
| 触点额定电流 | 5A | ||
机械参数
| 重量 | Approx. 19g .67 oz | 包装方式 | Tube |

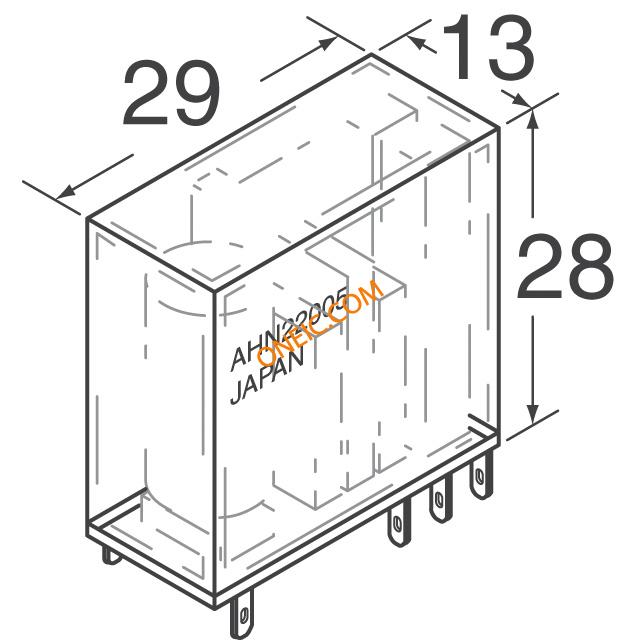

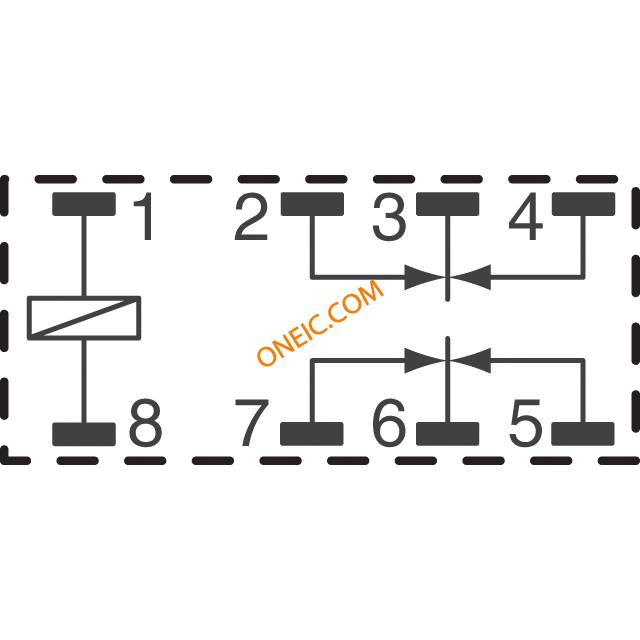

| 触点形式 | 2 Form C (DPDT-BM) | 安装类型 | Socketable |
| 安装样式 | Plug In | 触头材料 | Silver Nickel |
| 端接样式 | Quick Connect | 接触件端接 | Quick Connect |
| 典型触点布局 | 2C DPDT | 中压缩操作力 | 60C |
产品信息
| 类型 | Relays | 产品特性 | LED Indicator |
| 功能 | Single Side Stable | 继电器类型 | General Purpose |
| 卡标准 | General Purpose Relay | ||
环境参数
| 动作时间 | 15ms | 湿度范围 | 5 to 85% R.H. |
| 机械寿命 | AC: 10^7, DC: 210^7 | 抗冲击能力 | Min. 1,000 m/s^2 {100 G} |
| 浪涌额定值（瓦） | Without | 工作温度 | -40°C ~ 70°C |
| 抗振性（功能） | 10 to 55 Hz at double amplitude of 1.5 mm | 抗振性（破坏） | 10 to 55 Hz at double amplitude of 1.5 mm |
