DP-101-N
| 制造商 | |
| 描述 | SENSOR DIGITAL PRESSURE NPN SENSOR;STD VERSION;-100.0 TO +100KPA LOW-PRESSURE TYPE;M5 FEMALE + NPT1/8 MALE Pressure Sensor -100kPa to 100kPa Gage 4-Pin DEGITAL PRESSURE, STD VERSION, NPN, -100.0 TO +100KPa LOW-PRESSURE TYPE, M5 FEMALE + NPT1/8 MALE SENSOR,STDVERSION,-100.0TO+100KPALOW-PRESSURETYPE,M5FEMALE+NPT1/8MALE |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 其他名称 | 1110-2142 | 标准包装数量 | 1 |
合规参数
| RoHS | Compliant | 海关税号 | 90262020 |
电气参数
| 输出端 | Open Collector | 供电电压 | 12 V ~ 24 V |
| 开关电流 | 100mA | 直流开关电压 | 30VDC |
机械参数
| 重量 | 0 | 端口尺寸 | Female, M5 |
| 端接方式 | Connector | 封装形式 | Module |
| 主要材料 | Pressure | 端接样式 | Connector |
产品信息
| 功能 | Pressure | 制造商全称 | DP-100 |
| 测量范围 | 100kPa | ||
环境参数
| 压力类型 | Gauge | 防护等级 | IP40 |
| 工作压力 | ±14.5 PSI, ±100 kPa | 工作温度 | -10°C ~ 50°C |
相关型号

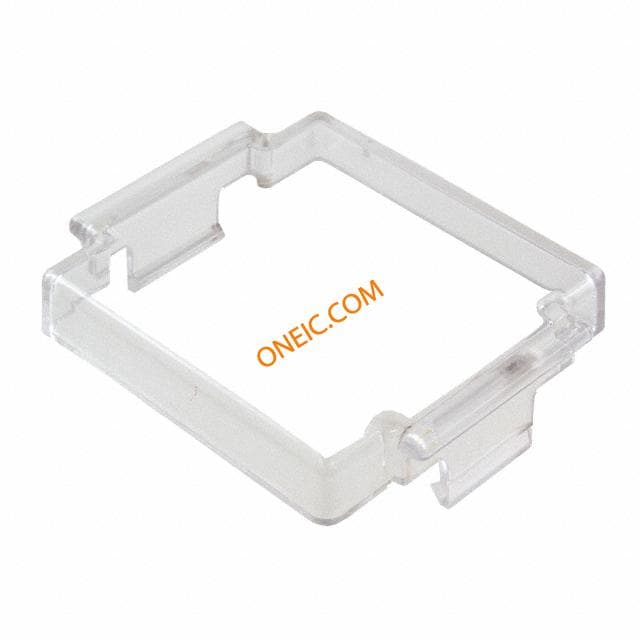

MS-DP1-3
Panasonic Electric Works - ACSD
FOR DP-100 FRONT PROTECT COVER ACCESSORY;FRONT PROTECTION COVER FOR DP-100 SERIES MOUNTING BRACKET, DP-100 SERIES SENSORS ACCESSORY,FRONTPROTECTIONCOVERFORDP-100SERIES
¥15.6475
详情

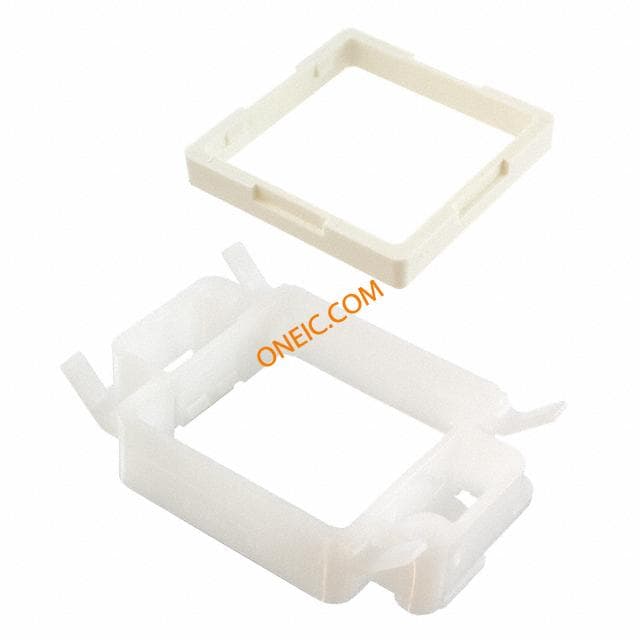

MS-DP1-2
