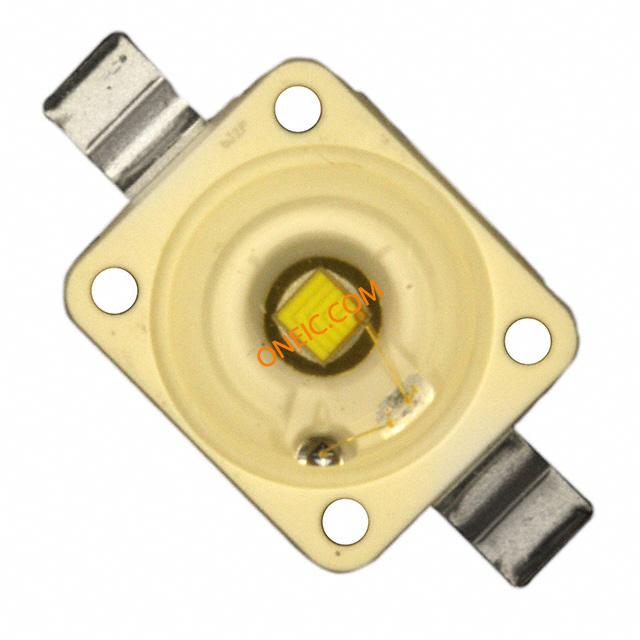

LW W5AM-KXKY-6K7L-Z

制造商	OSRAM Opto Semiconductors GmbH
描述	High Power LEDs - White White, 5600K 170 Degrees, 350mA LED DRAGON PLUS WHITE
分类	光电子学分立LED指示灯高亮LED

商业参数

商标名	Golden Dragon Plus	其他名称	475-2604-6
零件号别名	Q65110A7577	产品类别	High Power LEDs - White
标准包装数量	200	工厂包装数量	200

合规参数

RoHS

RoHS Compliant

电气参数

光通量	100 lm	视角	170 deg
输出电流	350mA	供电电压	3.2V
LED正向电流	350 mA	LED正向电压	3.2 V
最大额定电流	1A	光效 @ 测试电流	75 lm/W
25°C时测试电流下的光通量	84 lm (71 lm ~ 97 lm)	光通量 @ 85°C, 测试电流	67 lm

机械参数

宽度	6.2 mm	高度	1.9 mm
长度	7.2 mm	包装方式	Reel
灯颜色	5600 K	透镜颜色	Clear
安装类型	Surface Mount	安装样式	SMD/SMT
封装形式	2-SMD, Gull Wing	照明颜色	Cool White
显色指数（CRI）	80

产品信息

色温 (K)

5600K (Typ)

环境参数

机械寿命	Obsolete	工作温度	+ 125 C
光通量 @ 电流/温度	185 lm
