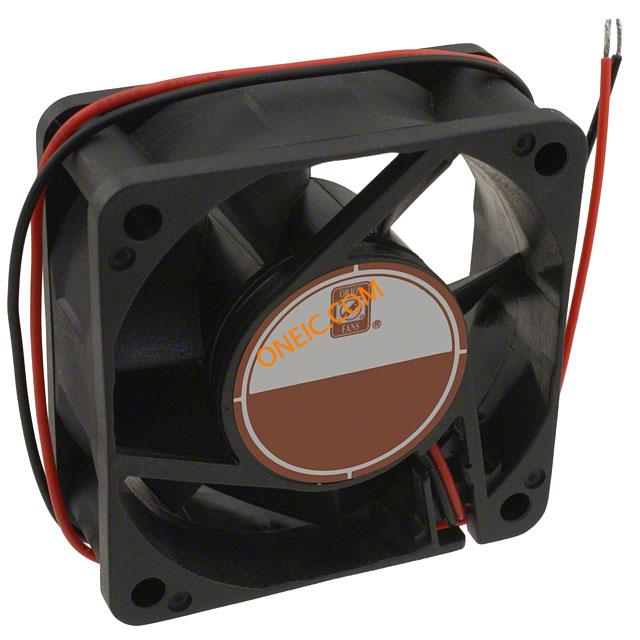

OD6025-48HB
| 制造商 | Orion Fans |
| 描述 | Fans 60x25mm 48VDC 30dBA 28CFM 4200RPM .07A FAN DC 60X25 48V 28CFM Fans Fan DC 60x25mm 48V 28CFM Ball Fan;DC;48V;0.07A;60x60x25mm;Sq;28CFM;30dBA;3.4W;4200RPM;Leadwires |
| 分类 |
商业参数
| 产品 | Fans | 产品类别 | Fans |
| 标准包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 噪声 | 30 dB | 转速 | 4200 RPM |
| 功率（瓦） | 3.40W | 额定功率 | 50 mW |
| 额定电压 | 48VDC | 供电电压 | 48 V |
| 最大额定电流 | 0.070A | ||
机械参数
| RPM | 4200 RPM | 尺寸 | 2.36x1(60x25)In.(mm) |
| 风量 | 28.0 CFM (0.793m³/min) | 风扇类型 | Tubeaxial |
| 材料（通用） | Plastic | 旋转范围 | CW |
| 端接方式 | 2 Wire Leads | 轴承类型 | Ball |
| 静压 | 0.240 in H2O (59.8 Pa) | 壳体材料 | Polybutylene Terephthalate (PBT) |
| 刀片材料 | Polybutylene Terephthalate (PBT), Fiberglass Reinforced | 框架材料 | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| 主要材料 | Fans | 尺寸/外形 | Square - 60mm L x 60mm H x 25mm W |
| 端接样式 | Wire Leads | 风扇附件类型 | 2.36x1(60x25)In.(mm) |
| 总体尺寸 | 2.36x2.36x1In. | ||
产品信息
| 类型 | Square | 系列 | OD6025 |
| 功能 | DC | 方向 | IntakeoverStruts |
| 开关类型 | DC | 制造商全称 | OD6025Series |
| 配置 | Square | ||
环境参数
| 额定寿命 | 60000 hrs @ 45°C | 工作温度 | 14 ~ 158°F (-10 ~ 70°C) |
| 自然散热热阻 | 28CFM | 结工作温度 | 70°C |
文档与媒体
相关型号

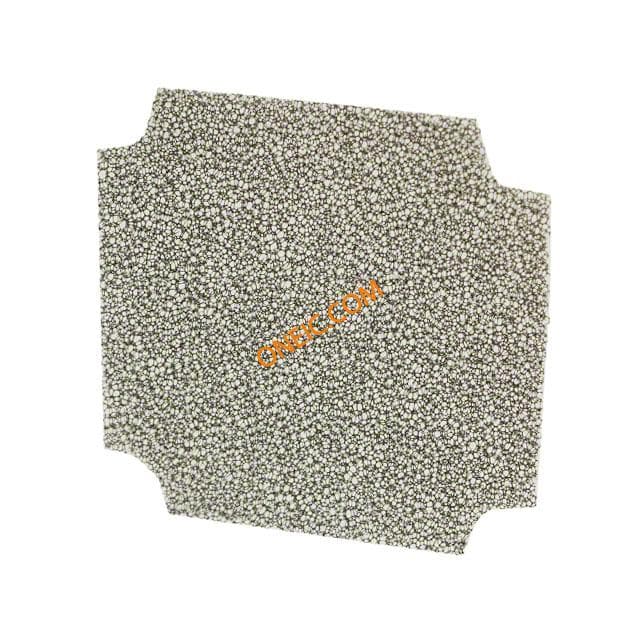

M60-45
Orion Fans
Fan Cords & Accessories 60mm 45ppi FILTER MEDIA ONLY 60MM FAN FILTER MEDIA 45PPM Fan Filter; Media; 45 PPI; 2.36 Fan Size Fan Accessories 60mm 45ppi FILTER MEDIA ONLY FanFilter;Media;45PPI;2.36FanSize
GRM60-45
Orion Fans
Fan Cords & Accessories Fan Filter 60mm 45 Pores Media Black FAN FILTER 60MM 45PPI Fan;Filter Kit;Retainer and Guard UL94V-0;Media PU Foam 45ppi;60mm Fan Accessories Fan Filter Kit 60mm 45 Pores Media Black Thrml Mgmt Access Fan Filter Guard Assembly 60mm Fan;FilterKit;RetainerandGuardUL94V-0;MediaPUFoam45ppi;60mm
G60P
Orion Fans
Fan Cords & Accessories Plastic Fan Guard for Fan Size 60mm FAN GUARD PLASTIC 60MM Fan;Finger Guard;Plastic;PBT;UL94V-0 Thermoplastic;60mm (2.36 in) Fan Accessories Plastic Fan Guard for Fan Size 60mm Fan,FingerGuard,Plastic,PBT,UL94V-0Thermoplastic,60mm(2.36in)
WMG60B
Orion Fans
Fan Cords & Accessories Guard 60mm Mesh Black FAN GUARD 60MM WIRE MESH BLACK Fan Accessories WireMeshGuard 60mm Black Finish
G60-4
Orion Fans
Fan Cords & Accessories Wire FanGuard Chrome for Fan Size 60mm FAN GUARD METAL 60MM Fan Guard; Steel (Wire); 2.36 in.; Electroplated Nickel Chrome/Black Anodized Fan Accessories Wire FanGuard Chrome for Fan Size 60mm Thrml Mgmt Access Finger Guard 60mm FanGuard;Steel(Wire);2.36in.;ElectroplatedNickelChrome
GRM60-30
Orion Fans
Fan Cords & Accessories Fan Filter 60mm 30 Pores Media Black FAN FILTER 60MM 30PPI Fan;Filter Kit;Retainer and Guard UL94V-0;Media PU Foam 30ppi;60mm Fan Accessories Fan Filter Kit 60mm 30 Pores Media Black Thrml Mgmt Access Fan Filter Guard Assembly 60mm Fan;FilterKit;RetainerandGuardUL94V-0;MediaPUFoam30ppi;60mm
WMG60M
Orion Fans
Fan Cords & Accessories Guard 60mm Mill Mesh Filter Media FAN GUARD 60MM WIRE MESH NATURAL Mesh Guard; Wire Mesh; For 60mm; 80mm; 92mm; 120mm; and 172mm Fans; Filters Fan Accessories WireMeshGuard 60mm Mill Finish Filter Thrml Mgmt Access Fan Filter Screen 60mm Aluminum/Stainless Steel MeshGuard;WireMesh;For60mm,80mm,92mm,120mm,and172mmFans,Filters

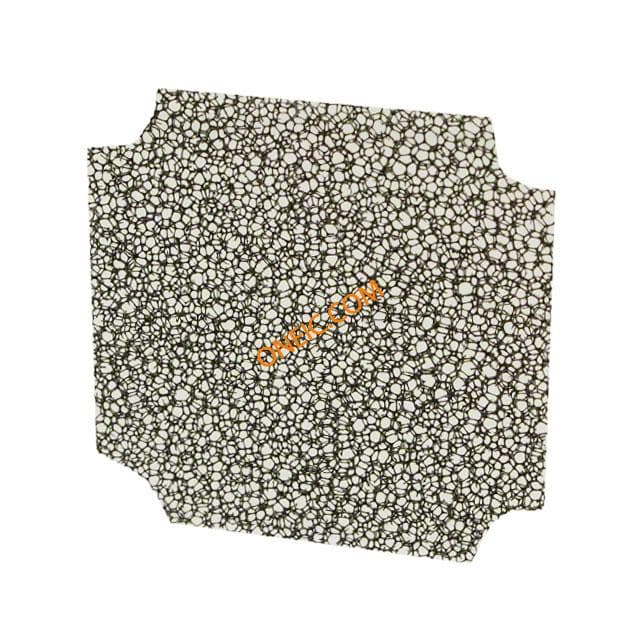

M60-30
