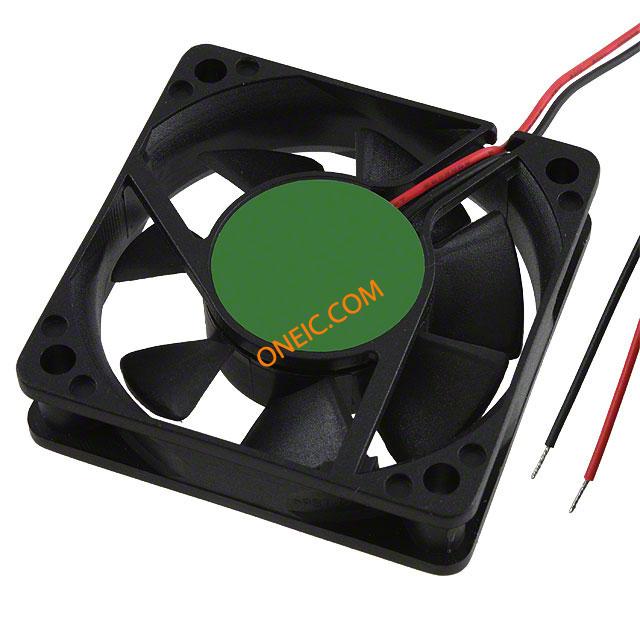

OD6015-05HB
| 制造商 | Orion Fans |
| 描述 | Fans 60mm 5VDC 17CFM FAN DC 60X15 5V 19CFM Fans Fan DC 60x15mm 5V 19CFM Ball 60X60X15MM5VDCFAN |
| 分类 |
商业参数
| 产品 | Fans | 产品类别 | Fans |
| 标准包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 噪声 | 37 dB | 转速 | 4500 RPM |
| 额定功率 | 370 mW | 电压范围 | 3.5 ~ 5.75VDC |
| 额定电压 | 5VDC | 供电电压 | 5 V |
| 最大额定电流 | 0.400A | ||
机械参数
| RPM | 4500 RPM | 风量 | 19.0 CFM (0.538m³/min) |
| 风扇类型 | Tubeaxial | 端接方式 | 2 Wire Leads |
| 轴承类型 | Ball | 静压 | 0.130 in H2O (32.4 Pa) |
| 壳体材料 | Polybutylene Terephthalate (PBT) | 刀片材料 | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| 框架材料 | Polybutylene Terephthalate (PBT), Fiberglass Reinforced | 尺寸/外形 | Square - 60mm L x 60mm H x 15mm W |
| 端接样式 | Wire Leads | ||
产品信息
| 系列 | OD6015 | 产品特性 | Tachometer |
| 功能 | DC | 方向 | IntakeoverStruts |
| 制造商全称 | OD6015Series | 配置 | Square |
环境参数
| 额定寿命 | 60000 hrs @ 40°C | 工作温度 | -4 ~ 176°F (-20 ~ 80°C) |
| 自然散热热阻 | 19CFM | ||
