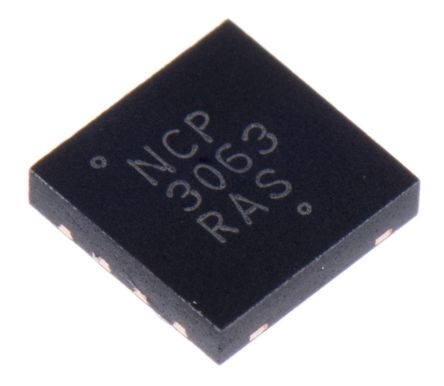

NCP3063MNTXG
| 制造商 | onsemi |
| 描述 | Conv DC-DC Single Non-Inv/Inv/Step Up/Step Down 3V to 40V 8-Pin DFN EP T/R IC REG BUCK BOOST INV ADJ 8DFN Voltage Regulators - Switching Regulators SWITCHING REGULATOR 1.5A 150kHz ON Semiconductor 直流-直流转换器, 反相、降压/升压, 1.5A, 0 → 40 V输入, 3.3 → 24 V输出, 190 kHz, 8针 DFN封装 Switching Voltage Regulators SWITCHING REGULATOR 1.5A 150kHz |
| 分类 |
商业参数
| 其他名称 | NCP3063MNTXGOSCT | 产品类别 | Voltage Regulators - Switching Regulators |
| 标准包装数量 | Tape & Reel | 工厂包装数量 | 4000 |
| 标准封装名称 | DFN | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| PWM类型 | Hybrid | 效率 | 85.5(Min) % |
| 输出类型 | Adjustable | 转换器类型 | 反相、降压/升压 |
| 稳压器类型 | 是 | 额定电压 | 3 V |
| 电源调整率 | 1.5|2|8 mV | 负载调整率 | 1.6|5|9 mV |
| 输出电流 | 1.5 A | 供电电压 | 3 to 40 V |
| 输出数量 | 1 | 开关稳压器 | Yes |
| 最大额定电流 | 1.5A | 开关频率 | 190 kHz |
| 同步整流 | No | 最小输入电压 | 1.25 V ~ 40 V |
| 输出电压（最大） | 24 V | 电压负载调整率 | 8 mV |
| 输出电压（最小/固定） | 3.3 V | ||
机械参数
| 宽度 | 4mm | 高度 | 0.95mm |
| 长度 | 4mm | 包装方式 | Tape and Reel |
| 引脚样式 | No Lead | 安装类型 | Surface Mount |
| 安装样式 | SMD/SMT | 引脚数 | 8 |
| 封装形式 | 8DFN EP | 包装数量 | DFN EP |
| 尺寸/外形 | 4 x 4 x 0.95mm | 位数 | 8 |
| 供应商器件封装 | 8-DFN (4x4) | ||
产品信息
| 类型 | Non-Inverting|Inverting|Step Up|Step Down | 系列 | NCP3063 |
| 拓扑 | Buck | 制造商全称 | ON Semiconductor |
| 输出配置 | Surface Mount | ||
环境参数
| 工作温度 | 0 to 70 °C | ||
