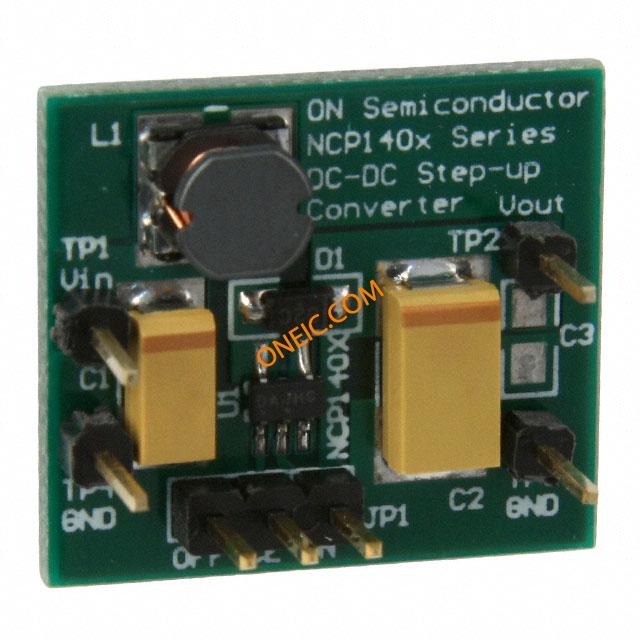

NCP1400AV33EVB
| 制造商 | |
| 描述 | Evaluation Board For NCP1400A, 3.3 V/100mA DC-DC Converter Power Management IC Development Tools ANA NCP1400A EVAL BRD EVAL BOARD FOR NCP1400AV33 |
| 分类 |
商业参数
| 产品 | Evaluation Boards | 其他名称 | NCP1400AV33EVBOS |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 额定电压 | 0.8 V | 输出电流 | 100 mA |
| 稳压器拓扑 | Boost | 开关频率 | 180kHz |
| 最小输入电压 | 3.3V | ||
机械参数
| 电路板厚度 | Fully Populated | ||
产品信息
| 类型 | Development Kit | 内容 | Board |
| 功能 | 33 V Micropower Step-up DC-DC Converter | 主要用途 | DC/DC, Step Up |
| 输出及类型 | 1, Non-Isolated | 工具类型/特性 | NCP1400A |
| 射频系列/标准 | NCP1400 | 使用的IC/零件 | NCP1400AV33 |
