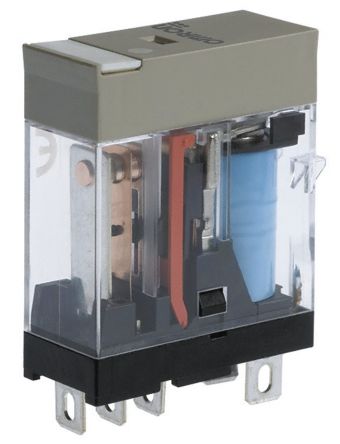

G2R-2-SNI DC24(S)
| 制造商 | |
| 描述 | Electromechanical Relay DPDT 5A 24VDC 1.113KOhm Plug-In RELAY GEN PURPOSE DPDT 5A 24V General Purpose Relays RELAY POWER RELAY, DPDT, 24VDC, 5A, PLUG IN Relay Industrial relay, 24 VDC, 1113 Ohm, 530 mW, G2R-2-SNI DC24(S), Omron Electronic Components Omron 5 A Plug In安装 双刀双掷 智能电源继电器, 125 V 直流,380 V 交流 |
| 分类 |
商业参数
| 零件号别名 | G2R-2-SNIDC24(S) | 产品类别 | General Purpose Relays |
| 标准包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85364110 | ||
电气参数
| 线圈类型 | Non Latching | 线圈功率 | 530 mW |
| 量程（°/s） | :OMRON - G2RS Series | 线圈电流 | 21.6mA |
| 释放时间 | 10ms | 额定功率 | 150W|1.25kVA |
| 可见输出 | Yes | 额定电压 | 125 |
| 线圈电阻 | 1.1 kOhms | 推频（MHz/V） | Yes |
| 输出电流 | :5A | 供电电压 | 24VDC |
| 开关电压 | 380VAC, 125VDC - Max | Vgs(th)（最大）@ Id | 3.6 VDC |
| 钳位电压 | 16.8VDC | 二极管配置 | No |
| 最大额定电流 | 5 | 触点电压（最大） | :250V |
| 最小输入电压 | 3.6VDC | 平均正向功率 | 0.53 W |
| 集电极-发射极饱和电压（最大）@ Vge, Ic | 16.8 VDC | 触点额定电流 | 5A |
| 数字供电电压 | :30V | ||
机械参数
| 密封 | Unsealed | 深度 | 13 |
| 宽度 | 13 mm | 高度 | 35.5 mm |
| 长度 | 29 mm | 重量 | 0.018 |
| 包装方式 | Bulk | 触点形式 | 2 Form C |
| 安装类型 | Plug-In | 安装样式 | Plug In |
| 冷却的封装 | Dust Cover | 触头材料 | Silver Alloy |
| 总长度 | 29 | 端接样式 | Solder Lug |
| 触点数 | 8 | 接触件端接 | Pin |
| 典型触点布局 | DPDT | ||
产品信息
| 类型 | General Purpose Relay | 系列 | G2RS |
| 产品特性 | LED Indicator, Test Button | 继电器类型 | Non-Latching |
环境参数
| 动作时间 | 15ms | 工作温度 | -40°C ~ 70°C |
文档与媒体
相关型号
