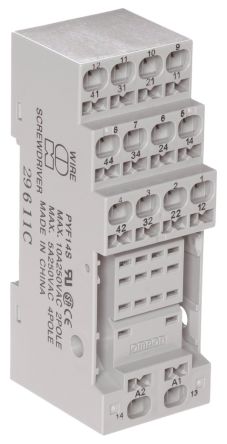

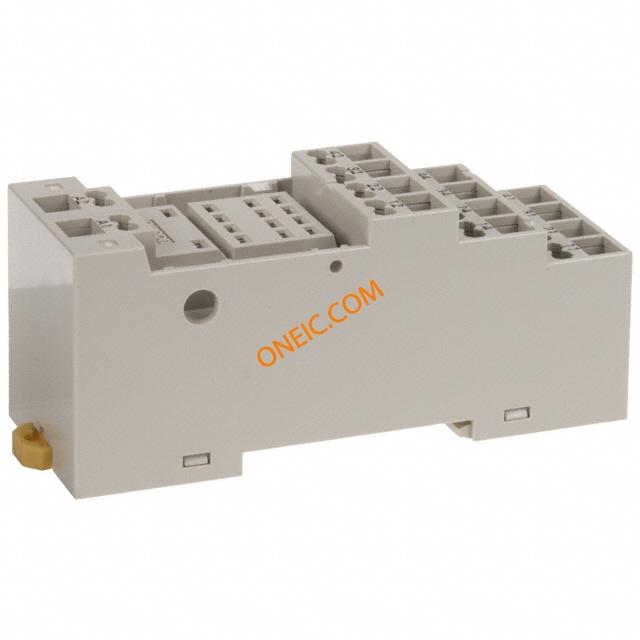

PYF14S

制造商	Omron Corporation
描述	Relay Sockets & Hardware SCREWLESS SKT 4POLE Conn Relay Socket SKT 4 POS SOCKET SCREWLESS 4P FOR MY2/4SER RELAY SOCKET Socket,Relay;TRACK-MOUNTEDSCREWLESSCLAMPTERMINAL,4POLE Socket; PIN:14; Application: H3YN-4,MY-2,MY-4; Mounting: DIN 继电器插座, 适用于MY 系列继电器
分类	工业电源组件和继电器配件继电器插座及配件

对参数有疑问？问 AI 助手

商业参数

最小起订量	70	交货时间	56 Days
单位包装	10	其他名称	Z2063
子类别	Connector Socket	零件号别名	1536384
产品类别	Relay Sockets & Hardware	标准包装数量	10
工厂包装数量	10

合规参数

RoHS	In Transition	欧盟RoHS	Compliant
海关税号	85366910

电气参数

额定电压	:250VAC	极数	4
最大额定电流	:5A	最小输入电压	250VAC

机械参数

深度	28.2	高度	85
重量	0.064	安装类型	DIN Rail
连接器类型	:Screw Clamp	安装样式	DIN Rail
总长度	31	端接样式	Clamp
触点数	4	位数	14

产品信息

类型	Relay Socket	连接器性别	SKT
系列	MY2, MY4	继电器类型	MY
附件类型	Socket, Screwless Clamp Terminal	单元数量	1
应用细节	Use with MY2 and MY4 series relays	适用产品/相关产品	MY4/MY2K Relays

文档与媒体

PDF 文档

PYxxS

PDF 文档

1514129.pdf

PDF 文档

D20PYFS1001.pdf
