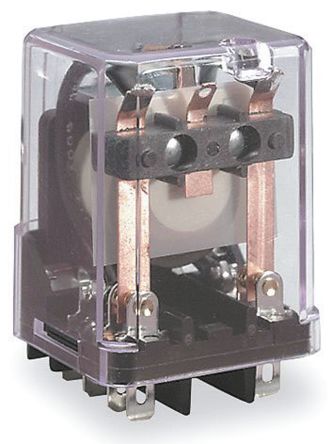

MJN2C-DC24
| 制造商 | Omron Corporation |
| 描述 | General Purpose Relays PLUG-IN DPDT 24VDC Electromechanical Relay DPDT 10A 24VDC 470Ohm Socket RELAY GEN PURPOSE DPDT 10A 24V POWER RELAY, DPDT, 24VDC, 10A, PLUG IN RELAY;E-MECH;GENPURP;DPDT;CUR-RTG10A;CTRL-V24DC;VOL-RTG120/240AC,28DC Relay General Purpose Standard Base: Plug-in terminals Amperage: 10 AMP Coil Voltage: 24 Vdc Configuration: DPDT Omron E5CN-R2MT-500 AC100-240 双刀双掷 插入式 非闭锁继电器, 10 A, 24V dc |
| 分类 |
商业参数
| 零件号别名 | 4477571 | 产品类别 | General Purpose Relays |
| 标准包装数量 | 25 | 工厂包装数量 | 25 |
合规参数
| RoHS | RoHS Compliant By Exemption | 欧盟RoHS | Compliant |
| 海关税号 | 00000000 | ||
电气参数
| 线圈类型 | Non-Latching | 线圈功率 | 1.2 W |
| 线圈电流 | 1.2 A | 释放时间 | 10ms |
| 可见输出 | No | 额定电压 | 28 |
| 线圈电阻 | 50 mOhms | 推频（MHz/V） | No |
| 供电电压 | 24 VDC | 开关电压 | 600VAC, 28VDC - Max |
| 钳位电压 | 18VDC | 二极管配置 | No |
| 最大额定电流 | 10 | 最大触点电流 | :10A |
| 最小输入电压 | 600 | 平均正向功率 | 1.2 W |
| 集电极-发射极饱和电压（最大）@ Vge, Ic | 18 VDC | 触点额定电流 | 10A |
| 供电电压 (Vcc/Vdd) | :28V | 额定交流电压（相对地/中性线） | :600V |
机械参数

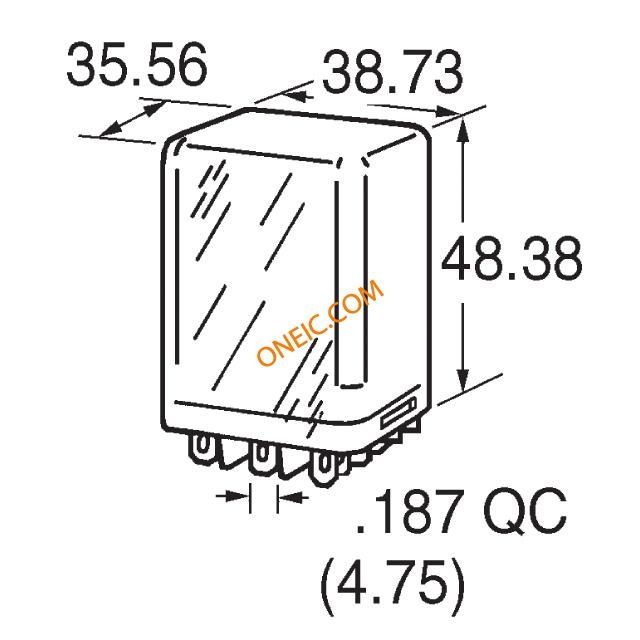

| 密封 | Unsealed | 深度 | 35.56 |
| 宽度 | 48.38 mm | 高度 | 55.49 |
| 长度 | 38.73 mm | 重量 | 0.073 |
| 包装方式 | Bulk | 触点形式 | DPDT |
| 安装类型 | Socket | 安装样式 | Plug In |
| 冷却的封装 | Dust Cover | 触头材料 | Silver Alloy |
| 总长度 | 38.73 | 端接样式 | 0.187Quick Connect |
| 触点数 | 8 | 接触件端接 | Plug |

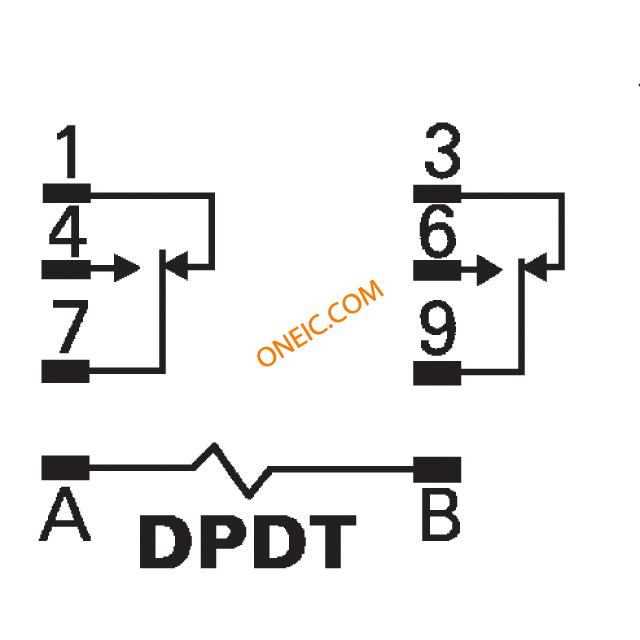

| 典型触点布局 | DPDT | ||
产品信息
| 类型 | General Purpose Relay | 系列 | MJN |
| 继电器类型 | Non-Latching | ||
环境参数
| 动作时间 | 20ms | 工作温度 | -45°C ~ 70°C |
