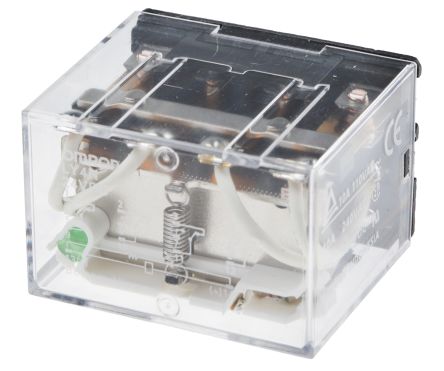

LY4N-DC24
| 制造商 | Omron Corporation |
| 描述 | General Purpose Relays RELAY 4PDT 10A 24VDC Electromechanical Relay 4PDT 10A 24VDC 350Ohm Socket RELAY GEN PURPOSE 4PDT 10A 24V POWER RELAY, 4PDT, 24VDC, 10A, PLUG IN RELAY;GENERALPURPOSE;LEDINDICATOR;PLUG-IN;STANDARDBRACKETMOUNTING;24VDC 欧姆龙(OMRON) 中间继电器 Relay General Purpose LED indicator Single contact Standard bracket mounting Base: Plug-in/solder terminals Amperage: 10 AMP Coil Voltage: 24 Vdc Configuration: 4PDT Omron E5CC-RX3A5M-007 4 刀双掷 插入式 非闭锁继电器, 10 A, 24V dc |
| 分类 |
商业参数
| 交货时间 | 56 Days | 子类别 | Electromechanical Relay |
| 零件号别名 | 4582548 | 产品类别 | General Purpose Relays |
| 标准包装数量 | 20 | 工厂包装数量 | 20 |
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85364110 | ||
电气参数
| 线圈类型 | Non-Latching | 线圈功率 | 1.5 W |
| 量程（°/s） | :OMRON - LY Series | 线圈电流 | 69 mA |
| 释放时间 | 25ms | 额定功率 | 240W|1.1kVA |
| 可见输出 | Yes | 额定电压 | 125 |
| 线圈电阻 | 350 Ohms | 承载电流 | :10A |
| 推频（MHz/V） | No | 输出电流 | :5A |
| 供电电压 | 24 VDC | 开关电压 | 250 VAC, 125 VDC |
| Vgs(th)（最大）@ Id | 2.4 VDC | 钳位电压 | 19.2VDC |
| 二极管配置 | No | 最大额定电流 | 10 |
| 触点电压（最大） | :110V | 最小输入电压 | 2.4VDC |
| 平均正向功率 | 1.5 W | 集电极-发射极饱和电压（最大）@ Vge, Ic | 19.2 VDC |
| 触点额定电流 | 10 A | 数字供电电压 | :24V |
机械参数
| 密封 | Unsealed | 深度 | 41.5 |
| 高度 | 42.4 | 重量 | 0.064 |
| 包装方式 | Bulk | 触点形式 | 4PDT |
| 安装类型 | Socket | 安装样式 | Through Hole |
| 冷却的封装 | Dust Cover | 触头材料 | Silver Alloy |
| 总长度 | 28 | 端接样式 | Quick Connect |
| 触点数 | 14 | 接触件端接 | Pin |
| 绝缘直径 | 2022 | 典型触点布局 | 4PDT |
产品信息
| 类型 | General Purpose Relay | 系列 | LY |
| 产品特性 | LED Indicator | 功能 | GeneralPurpose |
| 继电器类型 | Non-Latching | 行业别名 | LY4N-DC24 |
环境参数
| 动作时间 | 25ms | 工作温度 | -25°C ~ 40°C |
文档与媒体
