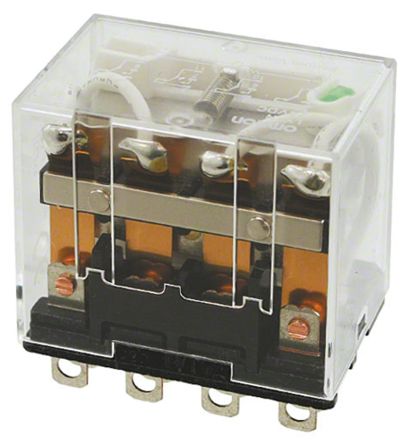

LY4-DC48
| 制造商 | Omron Corporation |
| 描述 | General Purpose Relays RELAY 48VDC 10A RELAY GEN PURPOSE 4PDT 10A 48V Electromechanical Relay 4PDT 10A 48VDC 1.6KOhm Socket POWER RELAY, 4PDT, 48VDC, 10A, PLUG IN RELAY;GENERALPURPOSE;PLUG-IN;4PDT;STANDARDBRACKETMOUNTING;48VDC 欧姆龙(OMRON) 中间继电器 Relay General Purpose Standard Single contact Standard bracket mounting Base: Plug-in/solder terminals Amperage: 10 AMP Coil Voltage: 48 Vdc Configuration: 4PDT Omron E5CC-QX3D5M-001 4 刀双掷 插入式 非闭锁继电器, 10 A, 48V dc |
| 分类 |
商业参数
| 交货时间 | 56 Days | 其他名称 | LY4DC48 |
| 子类别 | Electromechanical Relay | 零件号别名 | 1387320 |
| 产品类别 | General Purpose Relays | 标准包装数量 | 1 |
| 工厂包装数量 | 20 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85364110 |
电气参数
| 线圈类型 | Non-Latching | 线圈功率 | 1.5 W |
| 线圈电流 | 30 mA | 释放时间 | 25ms |
| 线圈电阻 | 1.6 kOhms | 供电电压 | 48 VDC |
| 开关电压 | 250 VAC, 125 VDC | Vgs(th)（最大）@ Id | 4.8 VDC |
| 最大触点电流 | :5A | 平均正向功率 | 1.5 W |
| 集电极-发射极饱和电压（最大）@ Vge, Ic | 38.4 VDC | 触点额定电流 | 10 A |
| 供电电压 (Vcc/Vdd) | :24V | 额定交流电压（相对地/中性线） | :110V |
机械参数
| 宽度 | 27.94 mm | 高度 | 36.06 mm |
| 长度 | 41.4 mm | 重量 | 0.082 |
| 包装方式 | Bulk | 触点形式 | 4PDT |
| 安装类型 | Socketable | 安装样式 | Through Hole |
| 触头材料 | Silver Alloy | 端接样式 | Plug In |
| 接触件端接 | Pin | 绝缘直径 | 2024 |
| 典型触点布局 | :4PDT | ||
产品信息
| 系列 | LY | 功能 | GeneralPurpose |
| 继电器类型 | General Purpose | 行业别名 | LY4-DC48 |
环境参数
| 动作时间 | 25ms | 工作温度 | -25°C ~ 40°C |
