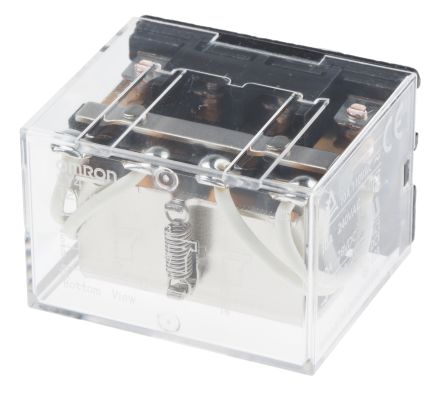

LY4-DC12
| 制造商 | Omron Corporation |
| 描述 | General Purpose Relays PLUG-IN 4PDT 12 VDC Electromechanical Relay 4PDT 10A 12VDC 100Ohm Socket RELAY GEN PURPOSE 4PDT 10A 12V RELAY;E-MECH;GENPURP;4PDT;CUR-RTG10A;CTRL-V12DC;VOL-RTG250/125AC/DC;14PIN 欧姆龙(OMRON) 中间继电器 Relay General Purpose Standard Single contact Standard bracket mounting Base: Plug-in/solder terminals Amperage: 10 AMP Coil Voltage: 12 Vdc Configuration: 4PDT Omron E5CC-QX3A5M-006 4 刀双掷 插入式 非闭锁继电器, 10 A, 12V dc |
| 分类 |
商业参数
| 交货时间 | 56 Days | 子类别 | Electromechanical Relay |
| 零件号别名 | 12 1340938 LY4 LY412VDC VDC | 产品类别 | General Purpose Relays |
| 标准包装数量 | 20 | 工厂包装数量 | 20 |
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 电流 | 10 Amps | 线圈类型 | Non Latching |
| 线圈功率 | 1.5 W | 线圈电流 | 75 mA |
| 释放时间 | 25ms | 额定功率 | 240W|1.1kVA |
| 可见输出 | No | 额定电压 | 125 |
| 线圈电阻 | 100 Ohms | 推频（MHz/V） | No |
| 供电电压 | 12 VDC | 开关电压 | 250 VAC, 125 VDC |
| 峰值脉冲功率 | 1.1 kVA | Vgs(th)（最大）@ Id | 1.2 VDC |
| 钳位电压 | 9.6VDC | 开关电流 | 1,100VA, 240W |
| 额定直流电流 | 240 W | 二极管配置 | No |
| 最大额定电流 | 10 A | 最小负载要求 | 100mA @ 5VDC |
| 最小输入电压 | 1.2VDC | 交流开关电压 | 250V |
| 直流开关电压 | 125V | 平均正向功率 | 0.9 W |
| 集电极-发射极饱和电压（最大）@ Vge, Ic | 9.6 VDC | 触点额定电流 | 10 A |
| 峰值脉冲电流（8/20µs） | 10 A | 每极负载侧连接方式 | 10A @110VAC/24VDC |
机械参数
| 密封 | Unsealed | 深度 | 36mm |
| 高度 | 28mm | 长度 | 41.5mm |
| 包装方式 | Bulk | 触点形式 | 4 Form C (4PDT) |
| 安装类型 | Socket | 安装样式 | Through Hole |
| 冷却的封装 | Dust Cover | 触头材料 | Silver Alloy |
| 总长度 | 28 | 尺寸/外形 | 41.5 x 36 x 28mm |
| 端接样式 | Quick Connect | 触点数 | 14 |
| 接触件端接 | Pin | 绝缘材料 - 类型 | 2kV ac |
| 典型触点布局 | 4PDT | ||
产品信息
| 类型 | General Purpose Relay | 功能 | Single Side Stable |
| 继电器类型 | Non-Latching | 应用领域 | 通用，电源 |
| 卡标准 | General Purpose Relay | 行业别名 | LY4-DC12 |
环境参数
| 额定寿命 | 200,000 ops | 动作时间 | 25ms |
| 工作寿命 | 100000000（机械）次操作，200000（电气）次操作 | 工作温度 | -25°C ~ 40°C |
文档与媒体
相关型号
