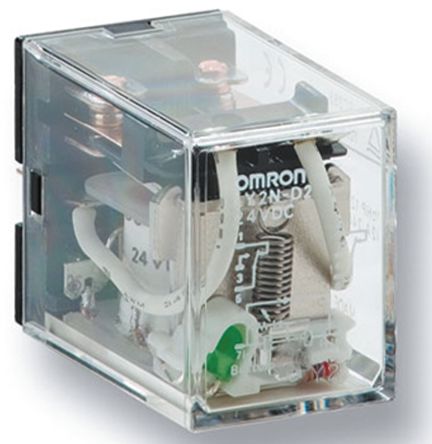

LY2N-DC12
| 制造商 | Omron Corporation |
| 描述 | General Purpose Relays GP RELAY DPDT 12VDC Electromechanical Relay DPDT 10A 12VDC 160Ohm Socket RELAY GEN PURPOSE DPDT 10A 12V POWER RELAY, DPDT, 12VDC, 10A, PLUG IN RELAY;GENERALPURPOSE;LEDINDICATOR;PLUG-IN;DPDT;STANDARD;12VDC 欧姆龙(OMRON) 中间继电器 Relay General Purpose LED indicator Single contact Standard bracket mounting Base: Plug-in/solder terminals Amperage: 10 AMP Coil Voltage: 12 Vdc Configuration: DPDT Omron E5CB-Q1TC AC100-240 双刀双掷 插入式 非闭锁继电器, 10 A, 12V dc |
| 分类 |
商业参数
| 交货时间 | 56 Days | 子类别 | Electromechanical Relay |
| 零件号别名 | LY2NDC12NC | 标准包装数量 | 50 |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 00000000 | ||
电气参数
| 线圈类型 | Non Latching | 线圈功率 | 900 mW |
| 量程（°/s） | :OMRON - LY Series | 线圈电流 | 75mA |
| 释放时间 | 25ms | 额定功率 | 240W|1.1kVA |
| 可见输出 | Yes | 额定电压 | 125 |
| 线圈电阻 | 160 Ohms | 推频（MHz/V） | No |
| 输出电流 | :10A | 供电电压 | 12VDC |
| 开关电压 | 250VAC, 125VDC - Max | Vgs(th)（最大）@ Id | 1.2 VDC |
| 钳位电压 | 9.6VDC | 二极管配置 | No |
| 最大额定电流 | 10 | 触点电压（最大） | :110V |
| 最小输入电压 | 1.2VDC | 平均正向功率 | 0.9 W |
| 集电极-发射极饱和电压（最大）@ Vge, Ic | 9.6 VDC | 触点额定电流 | 10A |
| 数字供电电压 | :24V | ||
机械参数
| 密封 | Unsealed | 深度 | 21.5 |
| 宽度 | 27.94 mm | 高度 | 36.06 mm |
| 长度 | 21.59 mm | 重量 | 0.032 |
| 包装方式 | Bulk | 触点形式 | 2 Form C |
| 安装类型 | Socket | 安装样式 | Through Hole |
| 冷却的封装 | Dust Cover | 触头材料 | Silver |
| 总长度 | 28 | 端接样式 | Quick Connect |
| 触点数 | 8 | 接触件端接 | Pin |
| 典型触点布局 | DPDT | ||
产品信息
| 类型 | General Purpose Relay | 系列 | LY |
| 产品特性 | LED Indicator | 继电器类型 | Non-Latching |
| 行业别名 | LY2N-DC12 | ||
环境参数
| 动作时间 | 25ms | 工作温度 | -25°C ~ 55°C |
