K3HB-XAD 24VAC/VDC
| 制造商 | Omron Corporation |
| 描述 | Controllers Process Indicator 24VAC/VDC DC Curr Process Indicator Ideal For Discriminating And Displaying Measurements For Voltage/Current Signals PROCESS INDICATR DC CURRNT INPUT 欧姆龙(OMRON) 固态继电器 |
| 分类 |
商业参数
| 产品类别 | Controllers | 标准包装数量 | 1 |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 精度 | ±0.1% + 1 digit | 输入类型 | Digital |
| 输出类型 | Option Cards Available | 显示类型 | 7 Segment |
| 供电电压 | 24 V | ||
机械参数
| 尺寸 | 95 mm L x 96 mm W x 44.8 mm H | 重量 | 0.662 lb (300.28g) |
| 端接方式 | Screw Terminals | 安装类型 | Panel |
| 端接样式 | Screw Terminal | 面板开孔尺寸（外形） | Rectangular - 92.00mm x 45.00mm |
| 显示字符高度 | 0.193" (4.90mm), 0.559" (14.20mm) | ||
产品信息
| 类型 | Process Controller | 系列 | K3HB |
| 产品特性 | Hold Function, NEMA 4X Sealing Gasket, Position Meter, Terminal Cover | 面板尺寸 | 3.78" W x 1.89" H (96.0mm x 48.0mm) |
| 显示样式 | Green, Red Characters, Black Background | 控制方式 | ON/OFF |
| 显示位数 | 5 | 测量范围 | 4 ~ 20mA, ±1.9999mA ~ ±199.99mA |
| 每行字符数 | 5, 5 | ||
环境参数
| 防护等级 | IP66 (Face), IP20 (Rear), IP00 (Terminal) | 工作温度 | -10°C ~ 55°C |
相关型号
K35-4
Omron Industrial
Sensor Hardware & Accessories 8 Pt. Event Brd/PNP Con. EVENT INPUT BOARD 8PTS PNP K3HB 欧姆龙(OMRON) 数字面板表
K35-2
Omron Industrial
Sensor Hardware & Accessories 8 Pt. Event Brd/NPN Con Panel Meters With Advanced Signal Processing Capabilities EVENT INPUT BOARD 8PTS NPN K3HB 欧姆龙(OMRON) 数字面板表
K34-DRT
Omron Industrial
Sensor Hardware & Accessories Devicenet Module DEVICENET MODULE FOR K3HB 欧姆龙(OMRON) 数字面板表
K34-C1
Omron Industrial
Controllers High-Low Relay Output Board Panel Meters With Advanced Signal Processing Capabilities RELAY OUTPT BOARD HI/LO FOR K3HB 欧姆龙(OMRON) 功率继电器 Omron 选件卡 2296087, 使用于K3HB 数字指示器
K34-T2
Omron Industrial
Controllers Transistor PNP Open HH/H/PASS/L/LL TRNS OUT PNP HH/H/PASS/L/LL K3HB 欧姆龙(OMRON) 数字面板表
K34-C2
Omron Industrial
Controllers 63HB HH/H/L/LL RLYOUTPUT BRD Panel Meters With Advanced Signal Processing Capabilities RELAY OUTPT BOARD HH/H/LL/L K3HB O/P option for K3HB, 5 relay SPST-NO OutputBoard,RelayContact(HH/H/LL/L:SPST-NOeach) Omron 继电器模块
K32-DICN
Omron Industrial
Controllers Special Event Input Cable CABLE SPECIAL EVENT INPUT 欧姆龙(OMRON) 电气装备电缆
K35-1
Omron Industrial
Controllers 5 Pt. Event NPN Terminal Panel Meters, Panel Meters With Advanced Signal Processing Capabilities EVENT INPUT BOARD 5PTS NPN K3HB i/p option card, event input 5 point NPN 欧姆龙(OMRON) 数字面板表
K34-T1
Omron Industrial
Relay Sockets & Hardware Transistor NPN Open HH/H/PASS/L/LL Panel Meters With Advanced Signal Processing Capabilities TRNS OUT HH/H/PASS/L/LL NPN K3HB 欧姆龙(OMRON) 数字面板表
K32-BCD
Omron Industrial
Controllers Special BCD output Cable Cable Assembly Data 0.3m K3HB to 37 POS D-Subminiature F-F CABLE SPECIAL BCD OUTPUT 欧姆龙(OMRON) 功率继电器

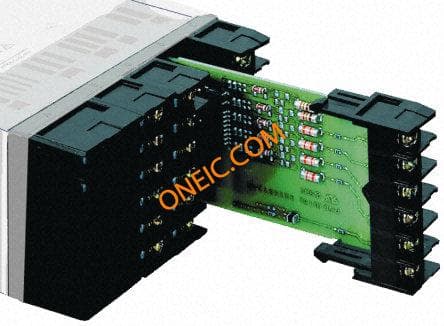

K35-3
