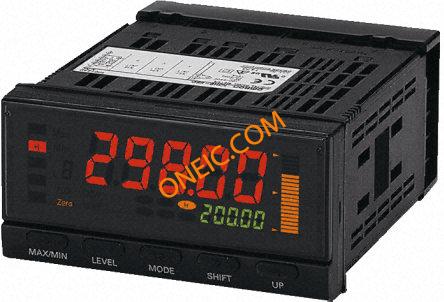

K3HB-CNB 100-240VAC
| 制造商 | |
| 描述 | Controllers NPN Up/Down Counter 100-240VAC Measure High-Speed Up/Down Pulses With This Up/Down Pulse Meter COUNT INDICATOR NPN/VOLTAGE INPT Counter Omron K3HB-CNB 100/240VAC 24, 100 to 240V ac/dc, V ac Omron 数字计数器 K3GNPDT224DC, 100 → 240 V 交流，24 V 交流/直流电源 |
| 分类 |
商业参数
| 零件号别名 | 1350637 | 产品类别 | Controllers |
| 标准包装数量 | 1 | 工厂包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 复位 | Front Panel, Programmable | 输出端 | Relay, Transistor |
| 背光 | Yes | 计数率 | 50kHz |
| 输入类型 | No Voltage, Voltage | 输出类型 | Optional Boards Available |
| 量程（°/s） | -19 999 → 99 999 | 显示类型 | LCD - Dual Color Characters, Backlight |
| 位数 | 5 | 工作模式 | Up, Down, Individual, Quadrature |
| 时钟频率 | 50kHz | 供电电压 | 100 ~ 240VAC |
| LED正向电流 | 是 | ||
机械参数
| 重量 | * | 安装类型 | Panel Mount |
| 端接样式 | Screw Terminal | 面板开孔尺寸（外形） | Rectangular - 92.00mm x 45.00mm |
| 显示字符高度 | 0.560" (14.20mm), 0.192" (4.90mm) | ||
产品信息
| 工作模式 | 分钟 | 类型 | Meter |
| 系列 | K3HB | 方向 | Down, Up |
| 字符尺寸 | 14.2 mm | 测量范围 | -19 999 → 99 999 |
| 位数或字符数 | 5 | 每行字符数 | 5, 5 |
环境参数
| 防护等级 | IP66 (Face), IP20 (Rear), IP00 (Terminal) | 工作温度 | -10°C ~ 55°C |
