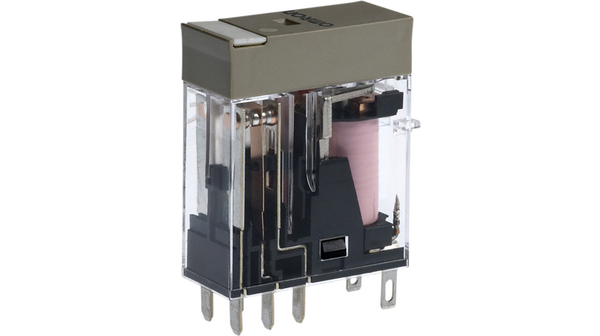

G2R-2-SNI AC230(S)

制造商	Omron Corporation
描述	General Purpose Relays DPDT 230VAC PLUG-IN W/LED RELAY GEN PURPOSE DPDT 5A 230V Electromechanical Relay DPDT 5A 230VAC 27.172KOhm Plug-In Relay Industrial relay, 230 VAC, 27172 Ohm, 0.9 VA, G2R-2-SNI AC230(S), Omron Electronic Components
分类	工业电源组件和继电器功率继电器，2安培以上自锁继电器

对参数有疑问？问 AI 助手

商业参数

产品类别	General Purpose Relays	标准包装数量	1
工厂包装数量	100

合规参数

RoHS

RoHS Compliant

电气参数

电流	5 Amps	线圈类型	Non-Latching
线圈功率	0.9 VA	电感量	27172
线圈电流	4.4 mA	释放时间	15ms
测试电压	5	线圈电阻	27.172 kOhms
供电电压	230 VAC	开关电压	380 VAC, 125 VDC
开关容量	1250 VA	Vgs(th)（最大）@ Id	69 VAC
开关电流	1,250VA, 150W	最小负载要求	10mA @ 5VDC
平均正向功率	0.9 VA	集电极-发射极饱和电压（最大）@ Vge, Ic	184 VAC
触点额定电流	5 A	每极负载侧连接方式	5A @ 250VAC/30 VDC
保护电压（VP）（2416）	IP 40

机械参数

尺寸	29 x 13 x 35.5 mm	宽度	13 mm
高度	35.5 mm	长度	29 mm
包装方式	Bulk	触点形式	DPDT
安装类型	Socketable	安装样式	Plug In
触头材料	Silver Alloy	端接样式	Plug In
触点数	2 change-over (CO)	接触件端接	Pin
典型触点布局	2C DPDT

产品信息

类型	Relays	设计类型	LED
系列	G2RS	产品特性	LED Indicator, Test Button
功能	Single Side Stable	继电器类型	General Purpose
卡标准	General Purpose Relay

环境参数

额定寿命	100,000 ops	动作时间	15ms
工作温度	-40°C ~ 70°C

文档与媒体

PDF 文档

g2r-_-s_ds_csm42.pdf
