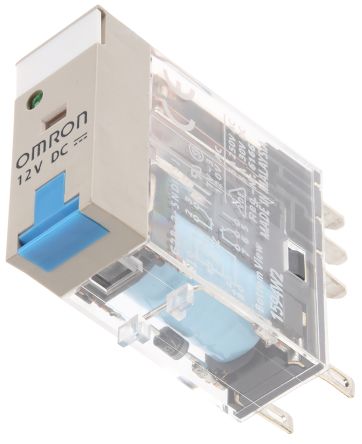

G2R-2-SNDI DC12(S)
| 制造商 | |
| 描述 | General Purpose Relays DPDT 5A 12VDC 275Ohm Socket RELAY GEN PURPOSE DPDT 5A 12V G2R-2-SDNI DPDT power relay,5A 12Vdc Electromechanical Relay DPDT 5A 12VDC 278Ohm Plug-In Relay Industrial relay, 12 VDC, 278 Ohm, 530 mW, G2R-2-SNDI DC12(S), Omron Electronic Components Omron 双刀双掷 PCB（印刷电路板）安装 非闭锁继电器, 12V dc |
| 分类 |
商业参数
| 产品类别 | General Purpose Relays | 标准包装数量 | 1 |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 电流 | 5 Amps | 线圈类型 | Non-Latching |
| 线圈功率 | 530 mW | 电感量 | 278 |
| 最大功率 | 150 W | 线圈电流 | 43.2 mA |
| 释放时间 | 20ms | 测试电压 | 5 |
| 线圈电阻 | 278 Ohms | 供电电压 | 12 VDC |
| 开关电压 | 380 VAC, 125 VDC | 峰值脉冲功率 | 1.25 kVA |
| 开关容量 | 1250 VA | Vgs(th)（最大）@ Id | 1.8 VDC |
| 开关电流 | 1,250VA, 150W | 额定直流电流 | 150 W |
| 输出浪涌功率 | 1.25 kVA | 最小负载要求 | 10mA @ 5VDC |
| 平均正向功率 | 0.53 W | 集电极-发射极饱和电压（最大）@ Vge, Ic | 8.4 VDC |
| 触点额定电流 | 5 A | 每极负载侧连接方式 | 5A @ 250VAC/30 VDC |
| 保护电压（VP）（2416） | IP 40 | ||
机械参数
| 尺寸 | 29 x 13 x 35.5 mm | 深度 | 13mm |
| 宽度 | 13 mm | 高度 | 35.5 mm |
| 长度 | 29 mm | 包装方式 | Bulk |
| 触点形式 | DPDT | 安装类型 | Socketable |
| 端子类型 | Solder | 安装样式 | Plug In |
| 触头材料 | Silver Alloy | 尺寸/外形 | 29 x 13 x 41.7mm |
| 端接样式 | Plug In | 触点数 | 2 change-over (CO) |
| 接触件端接 | Pin | 典型触点布局 | DPDT |
产品信息
| 类型 | Relays | 设计类型 | LED, diode, test key |
| 系列 | G2RS | 产品特性 | Diode, LED Indicator, Test Button |
| 功能 | Single Side Stable | 继电器类型 | General Purpose |
| 应用领域 | 通用 | 卡标准 | General Purpose Relay |
| 应用细节 | General Purpose | ||
环境参数
| 额定寿命 | 100,000 ops | 动作时间 | 15ms |
| 工作温度 | -40°C ~ 70°C | 最高温度限值 | +70°C |
