首页产品分类工业电源组件和继电器功率继电器，2安培以上自锁继电器G2R-2-SN AC230(S)

点击放大查看

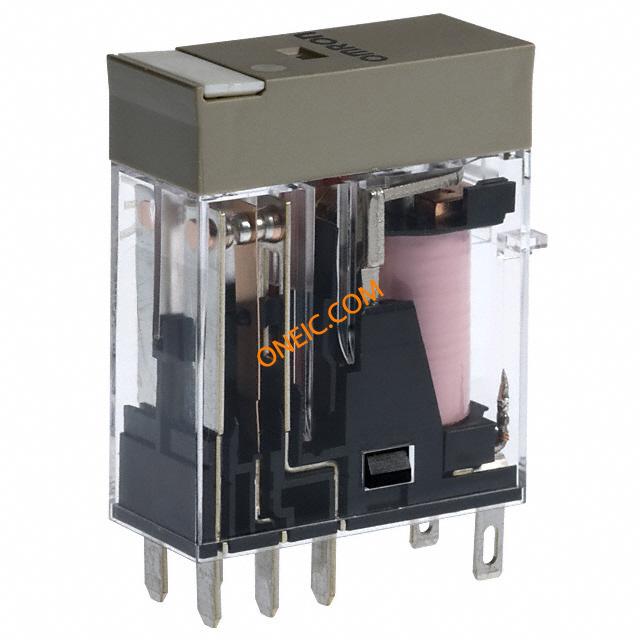

G2R-2-SN AC230(S)

制造商	Omron Corporation
描述	General Purpose Relays DPDT 5A 230VAC 26.85KOhm Socket Electromechanical Relay DPDT 5A 230VAC 27.172KOhm Plug-In RELAY GEN PURPOSE DPDT 5A 230V Relay
分类	工业电源组件和继电器功率继电器，2安培以上自锁继电器

对参数有疑问？问 AI 助手

商业参数

产品类别	General Purpose Relays	标准包装数量	1
工厂包装数量	100

合规参数

RoHS

RoHS Compliant

欧盟RoHS

Compliant

电气参数

电流	5 Amps	线圈类型	Non-Latching
线圈功率	0.9 VA	线圈电流	4.4 mA
释放时间	15ms	额定功率	150W\|1.25kVA
可见输出	Yes	额定电压	125
线圈电阻	27.172 K Ohms	推频（MHz/V）	No
供电电压	230 VAC	开关电压	380 VAC, 125 VDC
Vgs(th)（最大）@ Id	69 VAC	钳位电压	184VAC
开关电流	1,250VA, 150W	二极管配置	No
最大额定电流	5	最小负载要求	10mA @ 5VDC
最小输入电压	69VAC	平均正向功率	0.9 VA
集电极-发射极饱和电压（最大）@ Vge, Ic	184 VAC	触点额定电流	5 A
每极负载侧连接方式	5A @ 250VAC/30 VDC

机械参数

密封	Unsealed	深度	13
宽度	13 mm	高度	35.5 mm
长度	29 mm	包装方式	Bulk
触点形式	DPDT	安装类型	Plug-In
安装样式	Plug In	冷却的封装	Dust Cover
触头材料	Silver Alloy	总长度	29
端接样式	Solder Lug	触点数	8
接触件端接	Pin	典型触点布局	DPDT

产品信息

类型	General Purpose Relay	系列	G2RS
产品特性	LED Indicator	功能	Single Side Stable
继电器类型	Non-Latching	卡标准	General Purpose Relay

环境参数

额定寿命	100,000 ops	动作时间	15ms
工作温度	-40°C ~ 70°C

文档与媒体

PDF 文档

g2r-_-s_ds_csm42.pdf

相关型号

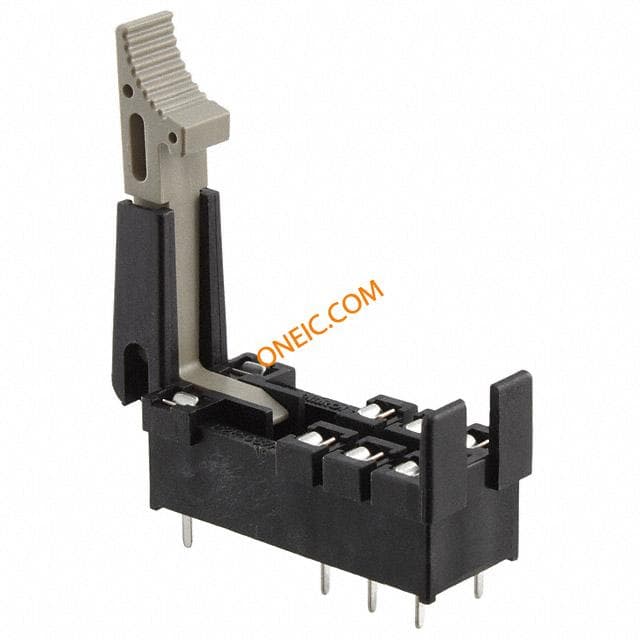

P2R-087P

Omron Industrial

Relay Sockets & Hardware Socket Back Mount PCB for 2Pin G2R RELAY SOCKET PC MNT FOR G2R-2-S Omron P2R-087P Socket H3RN Series Solid-State Timer Connecting Socket SOCKET, PCB, H3RN-2 TIMER Socket; PIN:8; 5A; 250VAC; Application: G2R-2-S; Mounting: PCB Omron P2R-08P 插座, 使用于H3RN 系列

¥68.8609

详情

P2R-08P

Omron Industrial

Relay Sockets & Hardware PCB SOCKET G2R-2S Conn Relay Socket SKT 8 POS Solder ST Thru-Hole RELAY SOCKET PC MNT FOR G2R-2-S Relay Socket For Use With 2 Pole G2R Series SOCKET, PCB, 8 PIN RELAY SOCKET Socket,Relay;PCBBACKMOUNTSOCKETFORG2R-2-S Socket; PIN:8; 5A; 250VAC; Application: G2R-2-S; Mounting: PCB PCB G2R-2S BACK CONN. SOCKET 继电器插座, 适用于2 极 G2R 系列

¥20.8801

详情

P2RF-08

Omron Industrial

Relay Sockets & Hardware SOCKET Conn Relay Socket SKT 8 POS Solder ST SOCKET TRACK SMD FOR G2R-2-S RELAY SOCKET Socket,Relay;2POLE;G2R-2-S Socket; PIN:8; 5A; 250VAC; Application: G2R-2-S; Mounting: DIN SOCKET RELAY DIN RAIL G2R-2-S

¥1.0029

详情

P2RF-08-E

Omron Industrial

Relay Sockets & Hardware TRCK MT SOCKT G2R-2S Conn Relay Socket SKT Screw SMD SOCKET RELAY DIN RAIL G2R-2-S RELAY SOCKET, DIN, 2 POLE, 5A Socket,Relay;TRACK/DINMOUNTEDSOCKETFORG2R-2-S Socket; PIN:8; 5A; 250VAC; Application: G2R-2-S; Mounting: DIN G2R-2-S SOCKET/TRACK MOUNT Relay socket for G2R-2-S, P2RF-08-E, Omron Electronic Components

¥32.0960

详情

P2RF-08-S

Omron

Conn Relay Socket SKT 8 POS ST Panel Mount SOCKET RELAY SCREWLESS G2R-2-S SCREWLESSSOCKET Relay socket for G2R-2-S, P2RF-08-S, Omron Electronic Components 继电器插座, 适用于G2R-2-S 系列

¥57.4056

详情

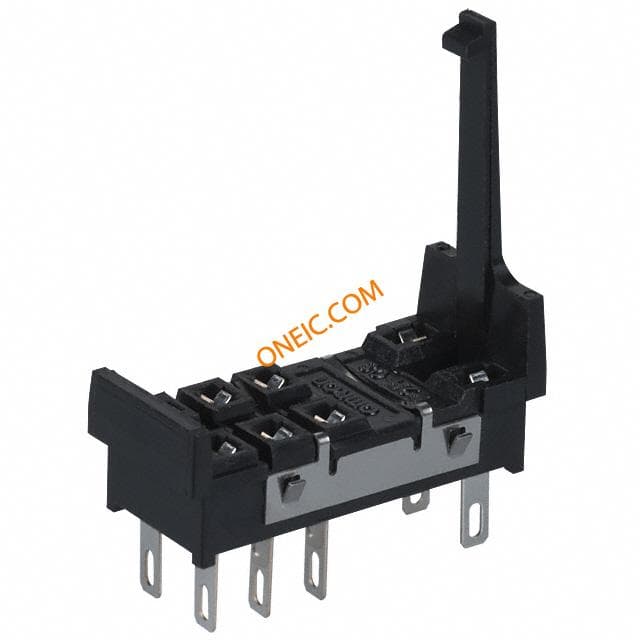

P2R-08A
