点击放大查看

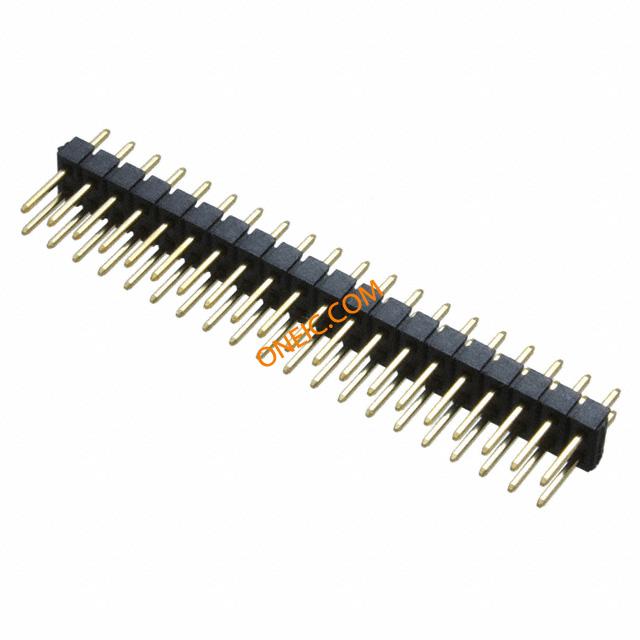

XG8W-4031
| 制造商 | |
| 描述 | Headers & Wire Housings Plug Straight Term 40Contact AuPlating PLUG 40POS DOUBLE ROW STRAIGHT |
| 分类 |
商业参数
| 交货时间 | 96 Days | 子类别 | Connector Headers and PCB Receptacles |
| 零件号别名 | 427718 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | 100 | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 额定电压 | 300 V | 最大额定电流 | 3 A |
| 绝缘电阻 | 1000 MOhms | ||
机械参数
| 颜色 | Black | 间距 | 0.100" (2.54mm) |
| 包装方式 | Bulk | 排间距 | 0.100" (2.54mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 安装类型 | Through Hole | 连接器类型 | Header, Unshrouded |
| 接触镀层 | Gold | 排数 | 2 |
| 触头材料 | Brass, Nickel | 壳体材料 | Polybutylene Terephthalate (PBT) |
| 端接样式 | Through Hole | 第一触头极性 | Pin (Male) |
| 触点数 | 40 | 位数 | 40 |
| 接触长度 - 配合 | 0.236" (6.00mm) | 接触镀层厚度 | 5.9µin (0.15µm) |
产品信息
| 类型 | Unshrouded | 系列 | XG8 |
| 产品子类型 | Headers | 加载位置数 | All |
环境参数
| 工作温度 | - 55 C to + 105 C | ||
