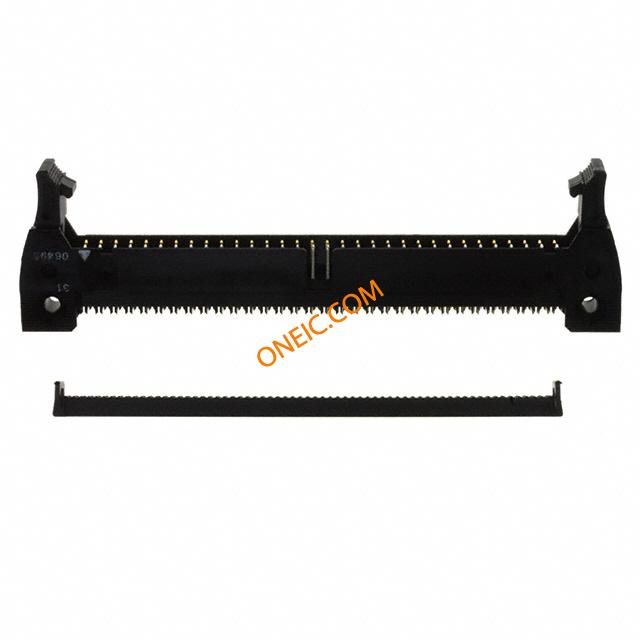

XG4E-6431
| 制造商 | |
| 描述 | Headers & Wire Housings LongLock Plug 64Pin OpenCover 1Polarized CONN PLUG 64POS 1A OPENEND COVER Conn Ejector Header PL 64 POS 2.54mm IDT RA Cable Mount WIRE-BOARD CONNECTOR PLUG, 64POS, 2.54MM 欧姆龙(OMRON) 其它传感器附件 |
| 分类 |
商业参数
| 交货时间 | 90 Days | 子类别 | Connector Headers and PCB Receptacles |
| 零件号别名 | 1756260 427528 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | 30 | 工厂包装数量 | 30 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
电气参数
| 量程（°/s） | :OMRON - XG4 Series | 额定电压 | 250 V |
| 最大额定电流 | 1 A | ||
机械参数
| 颜色 | Black | 间距 | 0.100" (2.54mm) |
| 重量 | 0 | 包装方式 | Bulk |
| 导线类型 | Ribbon Cable | 导线线规 | 28 AWG |
| 排间距 | 0.100" (2.54mm) | 触头类型 | Male Pin |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Plug |
| 接触镀层 | Gold | 紧固类型 | Latch, Long/Eject Hooks |
| 安装样式 | Cable | 排数 | 2 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Polybutylene Terephthalate (PBT) |
| 电缆端接方式 | IDC | 端接样式 | IDC |
| 第一触头极性 | Pin (Male) | 触点数 | 64 |
| 接触件端接 | :IDC / IDT | 位数 | 64 |
| 接触镀层厚度 | 5.9µin (0.15µm) | ||
产品信息
| 连接器性别 | :Header | 系列 | XG4 |
| 产品特性 | Feed Through | 产品子类型 | Plugs - Housings |
