点击放大查看

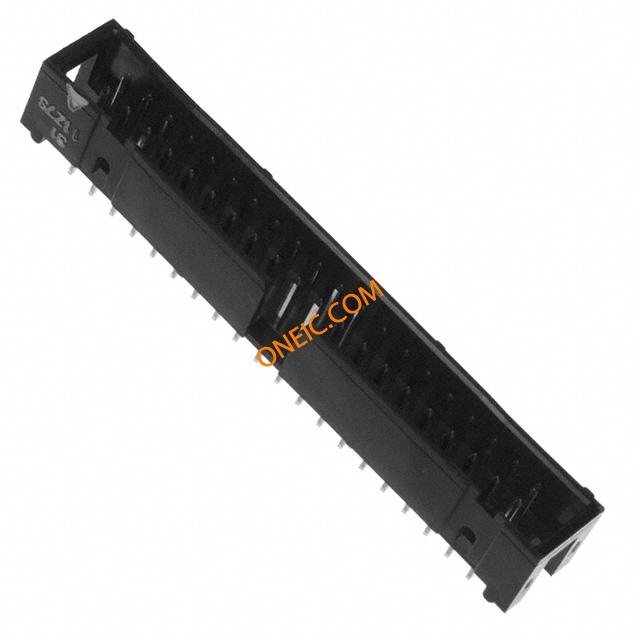

XG4C-4031
| 制造商 | |
| 描述 | Headers & Wire Housings MIL BoxType Plug 40P Straight 1Polarize Conn Shrouded Header PL 40 POS 2.54mm Solder ST Thru-Hole CONN PLUG 40POS 3A 300V STRT DIP 欧姆龙(OMRON) 其它传感器附件 |
| 分类 |
商业参数
| 交货时间 | 96 Days | 子类别 | Connector Headers and PCB Receptacles |
| 零件号别名 | 1751350 385263 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | 50 | 工厂包装数量 | 50 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 额定电压 | 300 V | 接触电阻 | 20 |
| 最大额定电流 | 3 A | 最小输入电压 | 300VAC |
机械参数
| 颜色 | Black | 深度 | 8.5 |
| 间距 | 0.100" (2.54mm) | 高度 | 9 |
| 包装方式 | Bulk | 排间距 | 0.100" (2.54mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 外壳颜色 | Black | 安装类型 | Through Hole |
| 连接器类型 | Header, Shrouded | 接触镀层 | Gold Over Nickel |
| 排数 | 2 | 触头材料 | Brass |
| 壳体材料 | Polybutylene Terephthalate | 总长度 | 58.1 |
| 端接样式 | Through Hole | 触点数 | 40 |
| 位数 | 40 | 接触镀层厚度 | 5.9µin (0.15µm) |
产品信息
| 类型 | Shrouded Header | 连接器性别 | PL |
| 系列 | XG4 | 产品子类型 | Headers |
| 行业别名 | XG4C-4031 | 加载位置数 | All |
文档与媒体
相关型号
XG4H-4031-1
omron electronics
Conn Socket Strip SKT 40 POS 2.54mm Solder ST Thru-Hole CONN SOCKET 40POS PRESS FIT PCB Board to Board & Mezzanine Connectors BtoB Socket 40Pin Straight 1Polarize 欧姆龙(OMRON) 其它传感器附件
XG4M-4030-T
omron electronics
Conn IDC Connector SKT 40 POS 2.54mm IDT RA Cable Mount CONN SOCKET 40POS W/ STRAIN RLF Headers & Wire Housings Socket+StrainRelief Set 40Pin 1Polar WIRE-BOARD CONN, SOCKET, 40POS, 2.54MM 欧姆龙(OMRON) 接近开关
XG4M-4030
Omron Electronics
ヘッダ & ワイヤハウジング OpenCoverSocket 40P NoStrainRelief 1Polr Conn IDC Connector SKT 40 POS 2.54mm IDT RA Cable Mount CONN SOCKET 40POS FLAT CABLE IDC Headers & Wire Housings OpenCoverSocket 40P NoStrainRelief 1Polr 欧姆龙(OMRON) 其它传感器附件
XG5M-4032-N
Omron Electronics
Headers & Wire Housings IDC 2Row Socket 40P Size1 1PolarizeGuide Conn Housing PL 40 POS 2.54mm Crimp ST CONN DBL ROW SOCKETS 40POS AWG24 欧姆龙(OMRON) 接近开关
XG4M-4030-U
Omron Electronics
Headers & Wire Housings Socket+NoLockStrain ReliefSet 40Pin 1Plr CONN SOCKT 40POS STRN RLF W/LOCK Conn IDC Connector SKT 40 POS 2.54mm IDT RA Cable Mount 欧姆龙(OMRON) 其它传感器附件
XG4Z-0002
Omron Electronics
Headers & Wire Housings Top Lock Lever XG4C Plug to XG4-5 Socket LEVER LOCK FOR XG4 PLUG Connector Accessories Lock Lever Polyamide Natural 欧姆龙(OMRON) 其它传感器附件
XG5M-4035-N
Omron Electronics
Headers & Wire Housings IDC 2Row Socket 40P Size2 1PolarizeGuide CONN IDC SOCKET 40POS AWG28-26 Conn Housing SKT 40 POS 2.54mm Crimp ST 欧姆龙(OMRON) 其它传感器附件

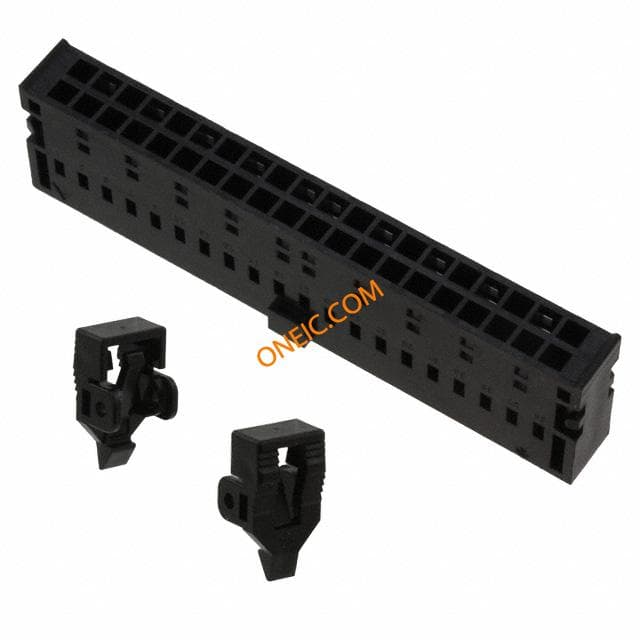

XG5N-401-U
