点击放大查看

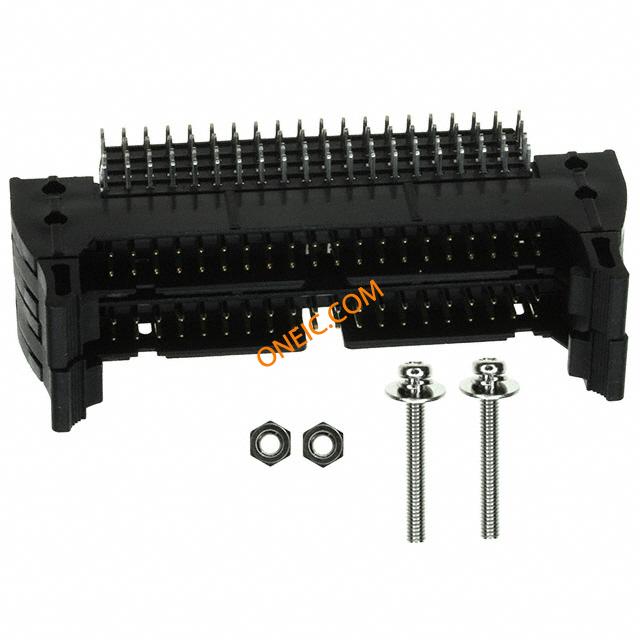

XG4A-4039-A
| 制造商 | |
| 描述 | Headers & Wire Housings 2Tier RA Plug 10x2P Long Lock 1Polarize Conn Ejector Header PL 80 POS 2.54mm Solder RA Thru-Hole CONN PLUG 40POS 3A 300V R/A DIP 欧姆龙(OMRON) 其它传感器附件 |
| 分类 |
商业参数
| 交货时间 | 89 Days | 子类别 | Connector Headers and PCB Receptacles |
| 零件号别名 | 1756240 427411 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | 28 | 工厂包装数量 | 28 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 额定电压 | 300 V | 接触电阻 | 20 |
| 最大额定电流 | 3 A | 最小输入电压 | 300VAC |
机械参数
| 颜色 | Black | 间距 | 0.100" (2.54mm) |
| 高度 | 17 | 包装方式 | Bulk |
| 排间距 | 0.100" (2.54mm) | 端接方式 | Solder |
| 触头类型 | Male Pin | 外壳颜色 | Black |
| 安装类型 | Through Hole | 连接器类型 | Header, Shrouded, Stackable (2) |
| 接触镀层 | Gold Over Nickel | 紧固类型 | Latch, Long/Eject Hooks |
| 排数 | 4 | 触头材料 | Brass |
| 壳体材料 | Polybutylene Terephthalate | 总长度 | 70.1 |
| 端接样式 | Through Hole | 第一触头极性 | Pin (Male) |
| 触点数 | 80 | 位数 | 40, 40 |
| 接触长度 - 配合 | 0.240" (6.10mm) | 接触镀层厚度 | 5.9µin (0.15µm) |
产品信息
| 类型 | Ejector Header | 连接器性别 | PL |
| 系列 | XG4 | 产品子类型 | Plugs - PCB |
| 加载位置数 | All | ||
