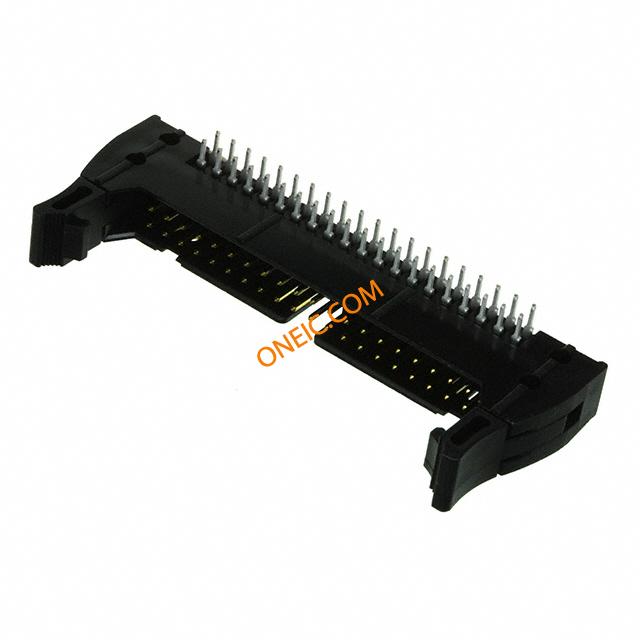

XG4A-4034
| 制造商 | |
| 描述 | Conn Ejector Header PL 40 POS 2.54mm Solder RA Thru-Hole CONN PLUG 40POS 3A RT ANGL DIP |
| 分类 |
商业参数
| 交货时间 | 96 Days | 子类别 | Connector Headers and PCB Receptacles |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 接触电阻 | 20 | 最大额定电流 | 3 |
| 最小输入电压 | 300VAC | ||
机械参数
| 颜色 | Black | 深度 | 27 |
| 间距 | 2.54 mm | 高度 | 8.5 |
| 包装方式 | Bulk | 排间距 | 0.100" (2.54mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 外壳颜色 | Black | 安装类型 | Through Hole |
| 连接器类型 | Header, Shrouded | 接触镀层 | Gold Over Nickel |
| 紧固类型 | Latch, Long/Eject Hooks | 排数 | 2 |
| 触头材料 | Brass | 壳体材料 | Polybutylene Terephthalate |
| 总长度 | 70.1 | 触点数 | 40 |
| 位数 | 40 | 接触镀层厚度 | 5.9µin (0.15µm) |
产品信息
| 类型 | Ejector Header | 连接器性别 | PL |
| 加载位置数 | All | ||
文档与媒体
相关型号
XG4M-4030-T
omron electronics
Conn IDC Connector SKT 40 POS 2.54mm IDT RA Cable Mount CONN SOCKET 40POS W/ STRAIN RLF Headers & Wire Housings Socket+StrainRelief Set 40Pin 1Polar WIRE-BOARD CONN, SOCKET, 40POS, 2.54MM 欧姆龙(OMRON) 接近开关
XG4M-4030
Omron Electronics
ヘッダ & ワイヤハウジング OpenCoverSocket 40P NoStrainRelief 1Polr Conn IDC Connector SKT 40 POS 2.54mm IDT RA Cable Mount CONN SOCKET 40POS FLAT CABLE IDC Headers & Wire Housings OpenCoverSocket 40P NoStrainRelief 1Polr 欧姆龙(OMRON) 其它传感器附件
XG5M-4032-N
Omron Electronics
Headers & Wire Housings IDC 2Row Socket 40P Size1 1PolarizeGuide Conn Housing PL 40 POS 2.54mm Crimp ST CONN DBL ROW SOCKETS 40POS AWG24 欧姆龙(OMRON) 接近开关
XG5M-4035-N
Omron Electronics
Headers & Wire Housings IDC 2Row Socket 40P Size2 1PolarizeGuide CONN IDC SOCKET 40POS AWG28-26 Conn Housing SKT 40 POS 2.54mm Crimp ST 欧姆龙(OMRON) 其它传感器附件

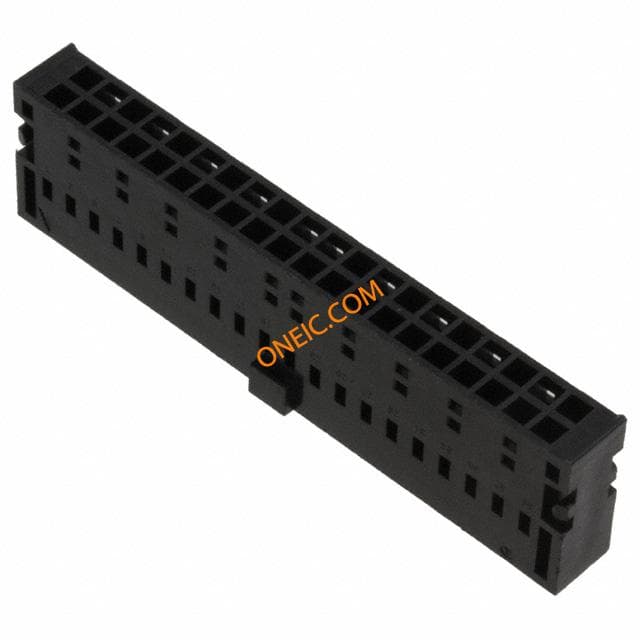

XG5N-401
