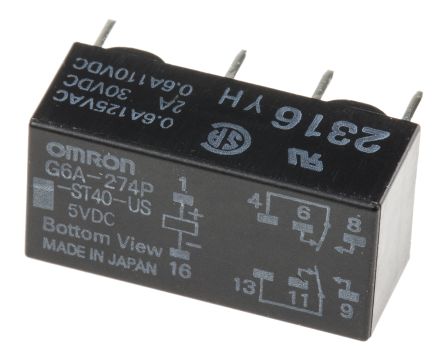

G6A-274P-ST40-US-DC5
| 制造商 | |
| 描述 | Low Signal Relays - PCB ThruHl NoLatch LoSns DPDT 5VDC 400mW 2A RELAY GENERAL PURPOSE DPDT 2A 5V Relay;E-Mech;Low Signal;DPDT;Cur-Rtg 0.5/2AAC/ADC;Ctrl-V 5DC;Vol-Rtg 125/30AC/DC Electromechanical Relay DPDT 2A 5VDC 62.5Ohm Through Hole Relay;E-Mech;LowSignal;DPDT;Cur-Rtg0.5/2AAC/ADC;Ctrl-V5DC;Vol-Rtg125/30AC/DC 欧姆龙(OMRON) 功率继电器 Relay Low-Signal Low-sensitivity Non-Latching Coil Voltage: 5 Vdc Configuration: DPDT Omron 双刀双掷 PCB（印刷电路板）安装 非闭锁继电器, 2 A, 5V dc |
| 分类 |
商业参数
| 交货时间 | 138 Days | 子类别 | Electromechanical Relay |
| 零件号别名 | 375035 G6A-1718G G6A1718G G6A274PST40US5DC | 产品类别 | Low Signal Relays - PCB |
| 标准包装数量 | 25 | 工厂包装数量 | 25 |
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 电流 | 2 Amps | 线圈类型 | Non-Latching |
| 线圈功率 | 400 mW | 线圈电流 | 80 mA |
| 释放时间 | 3ms | 线圈电阻 | 62.5 Ohms |
| 供电电压 | 5 VDC | 开关电压 | 250VAC, 220VDC - Max |
| Vgs(th)（最大）@ Id | 0.5 VDC | 开关电流 | 125VA/60W |
| 最大额定电流 | 2 A | 最小负载要求 | 10A @ 10mVDC |
| 交流开关电压 | 250V | 直流开关电压 | 220V |
| 平均正向功率 | 400 mW | 集电极-发射极饱和电压（最大）@ Vge, Ic | 3.5 VDC |
| 触点额定电流 | 2A | 峰值脉冲电流（8/20µs） | 2 A |
| 每极负载侧连接方式 | 0.5A @ 125VAC, 2A @ 30VDC | ||
机械参数
| 深度 | 10.1mm | 高度 | 8mm |
| 长度 | 20.2mm | 包装方式 | Tube |
| 触点形式 | 2 Form C (DPDT-BM) | 安装类型 | Through Hole |
| 触头材料 | Silver (Ag), Gold (Au) | 尺寸/外形 | 20.2 x 10.1 x 8mm |
| 端接样式 | Solder Pin | 典型触点布局 | 2C DPDT |
产品信息
| 类型 | Relays | 系列 | G6A |
| 功能 | Single Side Stable | 继电器类型 | General Purpose |
| 应用领域 | 测量设备、医疗、电信 | 卡标准 | Signal Relay |
| 行业别名 | G6A-274P-ST40-US-DC5 | ||
环境参数
| 额定寿命 | 1,000,000 ops | 动作时间 | 5ms |
| 工作寿命 | 50000 次操作 | 工作温度 | -40°C ~ 70°C |
| 最高温度限值 | +70°C | ||
