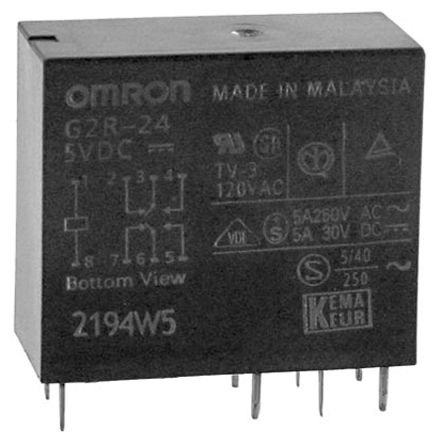

G2R-24-DC5
| 制造商 | |
| 描述 | Electromechanical Relay DPDT 4A 5VDC 47Ohm Through Hole General Purpose Relays Power PCB Relay DPDT Sealed 5VDC RELAY GENERAL PURPOSE DPDT 5A 5V Relay;E-Mech;Power;DPDT;Cur-Rtg 5A;Ctrl-V 5DC;Vol-Rtg 250/30AC/DC;PCB Mnt;8 Pin POWER RELAY, DPDT, 5VDC, 5A, PC BOARD Relay;E-Mech;Power;DPDT;Cur-Rtg5A;Ctrl-V5DC;Vol-Rtg250/30AC/DC;PCBMnt;8Pin 欧姆龙(OMRON) 固态继电器 General Purpose Relay Coil Voltage: 5 VDC Contact Configuration: 2C DPDT Current : 5 Amps Mounting : PC Board Operating Function: Single Side Stable Omron 双刀双掷 PCB（印刷电路板）安装 非闭锁继电器, 5 A, 5V dc |
| 分类 |
商业参数
| 交货时间 | 118 Days | 子类别 | Electromechanical Relay |
| 零件号别名 | 373572 G2R245DC G2RN8156R | 产品类别 | General Purpose Relays |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85364900 | 抗辐射加固 | No |
电气参数
| 线圈类型 | Non-Latching | 线圈功率 | 530 mW |
| 量程（°/s） | :OMRON - G2R Series | 线圈电流 | 106 mA |
| 线圈电压 | 5V | 释放时间 | 5ms |
| 额定功率 | 120W|1kVA | 可见输出 | No |
| 额定电压 | 125 V | 线圈电阻 | 47 Ohm |
| 承载电流 | :5A | 推频（MHz/V） | No |
| 输出电流 | :5A | 供电电压 | 5 V |
| 开关电压 | 380VAC, 125VDC - Max | Vgs(th)（最大）@ Id | 0.75 VDC |
| 钳位电压 | 3.5VDC | 额定交流电压 | 380V |
| 二极管配置 | No | 最大额定电流 | 4 A |
| 触点电压（最大） | :250V | 最小输入电压 | 380 V |
| 平均正向功率 | 530 mW | 集电极-发射极饱和电压（最大）@ Vge, Ic | 3.5 VDC |
| 触点额定电流 | 5A | 数字供电电压 | :30V |
| 直流反向电压（Vr）（最大） | 125V | 高侧电压（自举）最大 | 3.5VDC |
机械参数
| 密封 | Sealed | 深度 | 13.5 mm |
| 宽度 | 13 mm | 高度 | 25.5 mm |
| 长度 | 29 mm | 重量 | 0.018 |
| 包装方式 | Bulk | 触点形式 | DPDT |
| 安装类型 | Through Hole | 安装样式 | Through Hole |
| 封装形式 | DIP | 冷却的封装 | DIP |
| 触头材料 | Silver | 总长度 | 29 mm |
| 端接样式 | PC Pin | 触点数 | 8 |
| 接触件端接 | Pin | 位数 | 8 |
| 典型触点布局 | DPDT | ||
产品信息
| 类型 | Power Relay | 系列 | G2R |
| 已删除 | Compliant | 产品特性 | Sealed - Fully |
| 继电器类型 | Non-Latching | 按下测试类型 | No |
| 行业别名 | G2R-24-DC5 | ||
环境参数
| 动作时间 | 15ms | 工作温度 | -40 to 70 °C |
文档与媒体
相关型号
PFP-50N
omron electronics
RELAYS MISC. Mounting Track For Solid-State Timer DIN RAIL 35X7.3MM SLOTTED 19.7" Relay Sockets & Hardware DIN RAIL 50 CM DIN MOUNTING RAIL, 35MM,ALUMINIUM DINRAIL,MOUNTINGRAIL,50CM(1.64FT) SEE834-1399PFP-50N 欧姆龙(OMRON) 拨动开关 DIN 导轨, 500mm x 7.3mm x 35mm

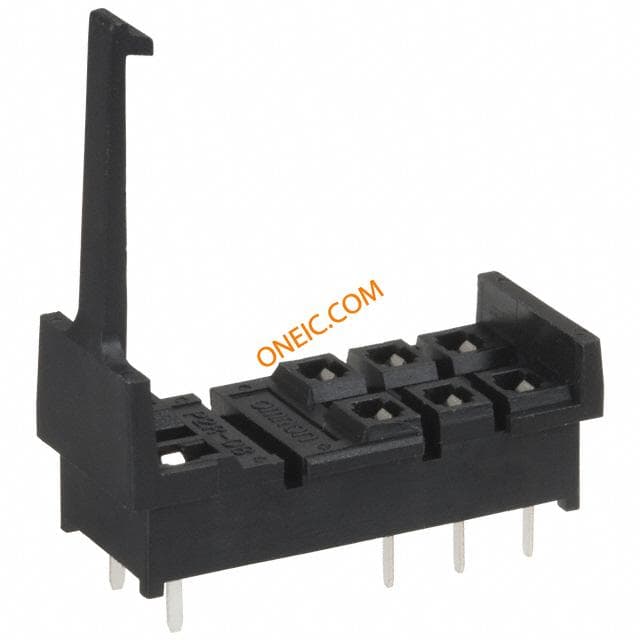

P2R-08P
Omron Industrial
Relay Sockets & Hardware PCB SOCKET G2R-2S Conn Relay Socket SKT 8 POS Solder ST Thru-Hole RELAY SOCKET PC MNT FOR G2R-2-S Relay Socket For Use With 2 Pole G2R Series SOCKET, PCB, 8 PIN RELAY SOCKET Socket,Relay;PCBBACKMOUNTSOCKETFORG2R-2-S Socket; PIN:8; 5A; 250VAC; Application: G2R-2-S; Mounting: PCB PCB G2R-2S BACK CONN. SOCKET 继电器插座, 适用于2 极 G2R 系列

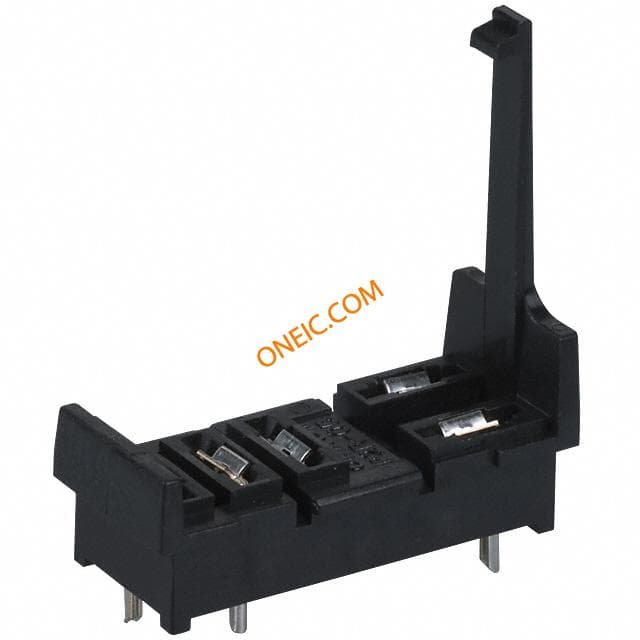

P2R-05P
