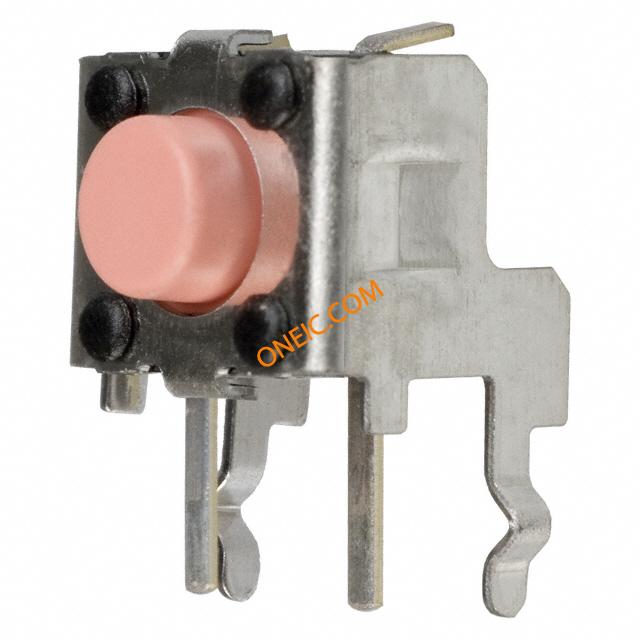

B3F-3125
| 制造商 | |
| 描述 | Tactile Switches 3.85MM Tactile Switch 260GF Switch Tactile N.O. SPST Flat Plunger PC Pins 0.05A 24VDC 2.55N Thru-Hole Bag SWITCH TACTILE SPST-NO 0.05A 24V SWITCH, 6X6, SPNO, VERTICAL KEYSWITCH 欧姆龙(OMRON) 微动开关 Microswitch; 1-position; SPST-NO; 0.05A/24VDC; THT; 2.55N; 6x6mm Tactile Switch Mounting: PC Board Operating direction: Right Angle Operating force: 260 gf Travel: - Dimensions: 7.4x7.3 mm PCB Switch 24 VDC 50 mA Through Hole pink, B3F-3125, Omron Electronic Components |
| 分类 |
商业参数
| 交货时间 | 96 Days | 子类别 | Switch Tactile |
| 零件号别名 | 1577234 364008 | 产品类别 | Tactile Switches |
| 标准包装数量 | 100 | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85365007 |
电气参数
| 电路 | SPST-NO | 额定电压 | 24 V |
| 极数 | 1 | 开关功能 | Off-Mom |
| 开关电压 | OFF-(ON) | 接触电阻 | 100mΩ |
| 介电强度 | 500VAC | 最大额定电流 | 50 mA |
| 最大触点电流 | :50mA | 绝缘电阻 | 100MΩ |
| 开关功能/额定值 | N.O. | 触点额定值 @ 电压 | 0.05A @ 24VDC |
| 连接器类型 - 电压输入 | :Solder | 供电电压 (Vcc/Vdd) | :24V |
| 直流触点额定值（阻性负载） | 0.05 A / 24 VDC | ||
机械参数
| 深度 | :3.85mm | 形状 | round |
| 高度 | 7.4 | 重量 | 0.00025 |
| 外形尺寸(长x宽) | 7.40mm x 7.30mm | 包装方式 | Bag |
| 引脚样式 | for PCB, angled | 本体表面处理 | Miniature |
| 本体尺寸 | 6 x 6mm | 端接方式 | PCBPins |
| 触点形式 | SPST | 高度（最大） | 3.85mm |
| 致动器类型 | Standard | 安装类型 | Through Hole |
| 开关行程 | 0.25mm | 端子类型 | PC Pins |
| 执行器颜色 | Pink | 连接器类型 | Yes |
| 接触镀层 | Gold | 安装样式 | Through Hole |
| 执行器长度 | 1.6 | 操作力 | 260gf |
| 触头材料 | phosphor bronze | 总长度 | 7.3 |
| 连接器间距 | 2.5x4.5mm | 端接样式 | PC Pin |
| 按钮样式/尺寸 | Flat Plunger | 位数 | 1-position |
| 执行器方向 | Side Actuated | 开关驱动电平 | SPST |
| 典型触点布局 | :SPST-NO | 触点材料 - 镀层 | silver plated |
| 额定扭矩（oz-in / mNm） | 2.55N | 执行器距PCB垂直高度 | 3.85mm |
产品信息
| 类型 | Miniature | 系列 | B3F |
| 产品特性 | Grounding Pin | 开关类型 | microswitch |
| 照明类型 | Non-Illuminated | 电气寿命 | 300000 |
| 单元数量 | 5 | 开关特性 | with ground terminal |
| 行业别名 | B3F-3125 | 其他规格 | 0.25mm |
| 触点配置 | SPST-NO | ||
