点击放大查看

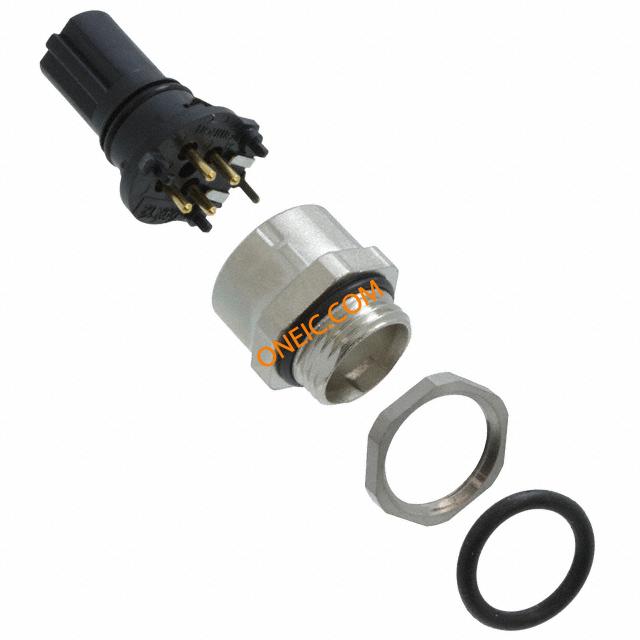

XS5P-T426-1
| 制造商 | |
| 描述 | CONN RCPT PNL MNT 4POS SKT Circular Metric Connectors M12 PanelMt RearLock PCB StraightTerminal Conn M12 Circular SKT 4 POS Solder ST Thru-Hole 4 Terminal 1 Port CONNECTOR, ETHERNET, 4POS, PANEL |
| 分类 |
商业参数
| 产品类别 | Circular Metric Connectors | 标准包装数量 | 50 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
电气参数
| 额定电压 | 125VDC | 最大额定电流 | 4A |
机械参数
| 重量 | 0 | 包装方式 | Bulk |
| 方向 | D | 外壳样式 | Receptacle |
| 端接方式 | Solder | 安装类型 | Panel Mount, Bulkhead - Rear Side Nut |
| 电缆直径 | 17 mm | 连接器类型 | Receptacle, Female Sockets |
| 接触镀层 | Gold | 紧固类型 | Bayonet Lock |
| 安装样式 | Panel | 触头材料 | :Bronze |
| 壳体材料 | Polyamide (PA) | 端接样式 | Quick Connect |
| 第一触头极性 | Socket (Female) | 触点数 | 4 |
| 接触件端接 | :Solder | 位数 | 4 |
| 外壳尺寸-插件 | M12-4 | 外壳材料及表面处理 | Zinc Die Cast, Nickel Plated |
| 接触镀层厚度 | 16µin (0.40µm) | 第一连接器安装类型 | :Panel |
产品信息
| 连接器性别 | :Receptacle | 系列 | XS5 |
| 产品特性 | Shielded | 产品子类型 | Connectors |
环境参数
| 密封等级 | IP 67 | 防护等级 | IP67 - Dust Tight, Waterproof |
| 工作温度 | -25°C ~ 70°C | ||
文档与媒体
相关型号
XS2Z-14
omron electronics
Connector Accessories Dust Cover Rubber Black COVER DUST M12 FOR CONNECTORS Circular Metric Connectors Sensor I/O Connector
XS2Z-22
omron electronics
Connector Accessories Dust Cover Brass Nickel Finish CONN WATERPROOF COVER FOR XS Circular Metric Connectors Accessories for XS Connector 欧姆龙(OMRON) 其它传感器附件
XS2Z-15
omron electronics
Connector Accessories Dust Cover Polyvinyl chloride Red COVER DUST M12 FOR CONNECTORS Circular Metric Connectors Sensor I/O Connector
XS5H-T421-BM0-K
omron electronics
ETHERNET CONNECTOR Cable Assemblies Ethernet Connector CABLE ASSY M12 CONN STR .5M Ethernet Cables / Networking Cables Ethernet Connector
XS5H-T421-CM0-K
omron electronics
ETHERNET CONNECTOR Cable Assemblies Ethernet Connector CABLE ASSY M12 CONN STR 1M Ethernet Cables / Networking Cables Ethernet Connector
XS5H-T421-DM0-K
omron electronics
ETHERNET CONNECTOR Cable Assemblies Ethernet Connector CABLE ASSY M12 CONN STR 2M Ethernet Cables / Networking Cables Ethernet Connector
XS5H-T421-EM0-K
omron electronics
ETHERNET CONNECTOR Cable Assemblies Ethernet Connector CABLE ASSY M12 CONN STR 3M Ethernet Cables / Networking Cables Ethernet Connector Cable Assembly Wire Lead 3m 22AWG M12 Circular M
XS5H-T421-GM0-K
omron electronics
ETHERNET CONNECTOR Cable Assemblies Ethernet Connector CABLE ASSY M12 CONN STR 5M Ethernet Cables / Networking Cables Ethernet Connector Cable Assembly Wire Lead 5m 22AWG M12 Circular M
XS5H-T421-KM0-K
omron electronics
ETHERNET CONNECTOR Cable Assemblies Ethernet Connector CABLE ASSY M12 CONN STR 15M Ethernet Cables / Networking Cables Ethernet Connector
XS5H-T421-JM0-K
omron electronics
ETHERNET CONNECTOR Cable Assemblies Ethernet Connector CABLE ASSY M12 CONN STR 10M Ethernet Cables / Networking Cables Ethernet Connector
XS5H-T422-AM0-K
Omron Electronics Inc-EMC Div
ETHERNET CABLE ANG 0.3M Ethernet Cables / Networking Cables .3M Cable 1End Conn. M12 Right Angle
XS5H-T422-CM0-K
Omron Electronics Inc-EMC Div
ETHERNET CABLE ANG 1M Ethernet Cables / Networking Cables 1M Cable 1End Conn. M12 Right Angle

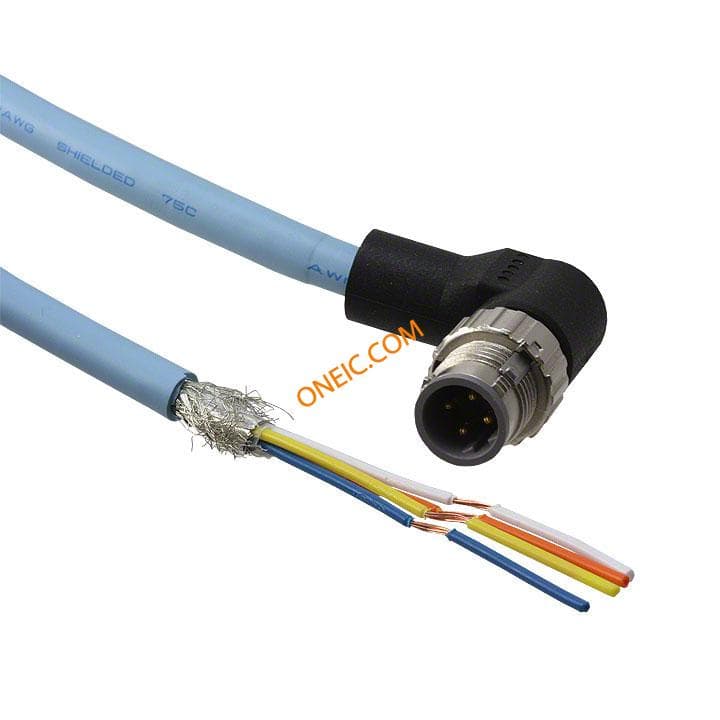

XS5H-T422-BM0-K
