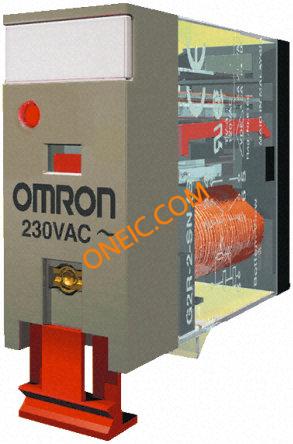

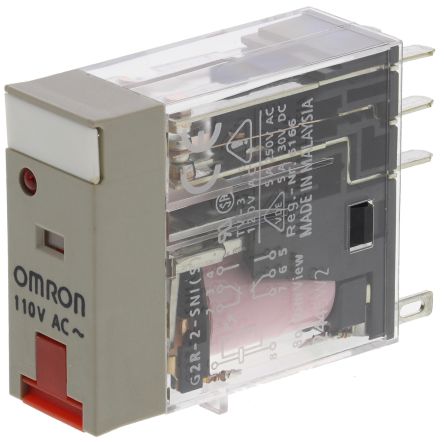

G2R-2-SNI AC110(S)
| 制造商 | |
| 描述 | RELAY GEN PURPOSE DPDT 5A 110V G2R-2-SNI DPDT power relay,5A 110Vac General Purpose Relays DPDT LED TEst Slim GP RY Industrial relay, 110 VAC, 4600 Ohm, 0.9 VA, G2R-2-SNI AC110(S), Omron Electronic Components Omron 双刀双掷 PCB（印刷电路板）安装 非闭锁继电器, 5 A, 110V ac |
| 分类 |
商业参数
| 其他名称 | G2R2SNIAC110S | 标准包装数量 | 1 |
合规参数
| RoHS | Compliant | ||
电气参数
| 线圈类型 | Non Latching | 线圈功率 | 0.9 VA |
| 电感量 | 4600 | 最大功率 | 150 W |
| 线圈电流 | 8.2mA | 释放时间 | 15ms |
| 隔离类型 | 5kV | 测试电压 | 5 |
| 线圈电阻 | 5.5 kOhms | 供电电压 | 110VAC |
| 开关电压 | 380VAC, 125VDC - Max | 峰值脉冲功率 | 1.25 kVA |
| 开关容量 | 1250 VA | Vgs(th)（最大）@ Id | 33 VAC |
| 开关电流 | 5 A | 额定直流电流 | 150 W |
| 最大额定电流 | 5 A | 输出浪涌功率 | 1.25 kVA |
| 交流开关电压 | 250V 交流 | 直流开关电压 | 30V dc |
| 集电极-发射极饱和电压（最大）@ Vge, Ic | 88 VAC | 触点额定电流 | 5A |
| 峰值脉冲电流（8/20µs） | 5 A | 保护电压（VP）（2416） | IP 40 |
机械参数
| 尺寸 | 29 x 13 x 35.5 mm | 深度 | 13mm |
| 高度 | 41.7mm | 长度 | 29mm |
| 包装方式 | Bulk | 触点形式 | DPDT (2 Form C) |
| 安装类型 | Socketable | 端子类型 | Solder |
| 触头材料 | Ag alloyed | 尺寸/外形 | 29 x 13 x 41.7mm |
| 端接样式 | Plug In | 触点数 | 2 change-over (CO) |
| 绝缘材料 - 类型 | 5kV | 典型触点布局 | DPDT |
产品信息
| 设计类型 | LED, test key | 产品特性 | LED Indicator, Test Button |
| 功能 | Y | 继电器类型 | General Purpose |
| 应用领域 | 电源 | 应用细节 | Power |
环境参数
| 动作时间 | 15ms | 工作温度 | -40°C ~ 70°C |
| 最高温度限值 | +70°C | ||
