E300KR10E

制造商	Ohmite Manufacturing Company
描述	Wirewound Resistors - Chassis Mount 300watt .1ohm 10% RESISTOR POWER ADJ 0.1 OHM 300W Wirewound Resistors 300watt .1ohm 10% Res Wirewound 0.1 Ohm 10% 300W ±400ppm/°C RDL Lug Bolt-On
分类	电阻器与电位器底盘安装电阻底盘安装电阻

对参数有疑问？问 AI 助手

商业参数

产品	Power Resistors Wirewound Vitreous Enamel	产品类别	Wirewound Resistors - Chassis Mount
标准包装数量	1

合规参数

RoHS

RoHS Compliant

电气参数

容差	10 %	电阻	100 mOhms
功率（瓦）	300W	额定功率	300 W
电阻值（欧姆）	0.1

机械参数

长度	8.500" (215.90mm)	直径	1.126" OD, 0.748" ID (28.60mm x 19.00mm)
包装方式	Bulk	端接方式	Solder Lug
安装类型	Chassis Mount	封装形式	Radial, 3 Lead, Tubular
尺寸/外形	28.58 mm Dia. x 215.9 mm L	端接样式	Solder Lug

产品信息

类型	Corrib Adjustable Vitreous Enamel Power Resistors	系列	PFE
调节方式	Slide

环境参数

工作温度

+ 25 C to + 400 C

温度系数

400 PPM / C

文档与媒体

PDF 文档

280 Series

相关型号

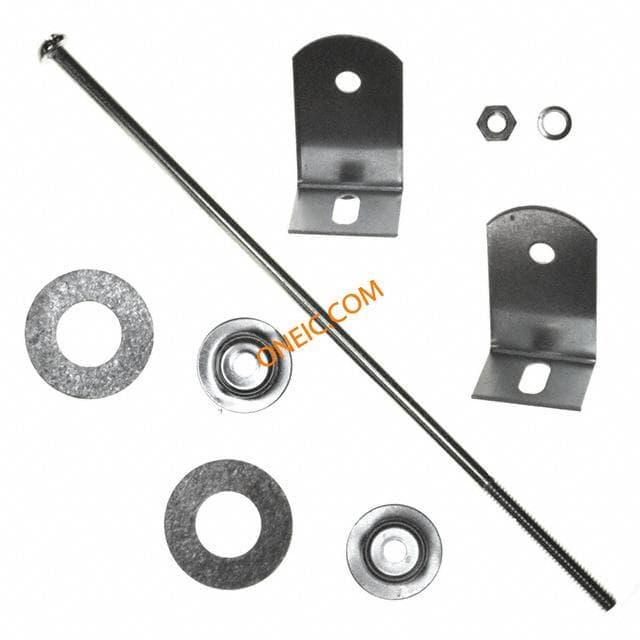

6126P-8 1-2E

Ohmite

Resistor Hardware Mounting BraCket MOUNTING BRACKET 1 RESISTOR Resistor; Bracket; Mounting Thru-Bolts And Mounting Brackets Resistor, Bracket, Mounting; 8-1/2 InchCore Length

¥67.9320

详情

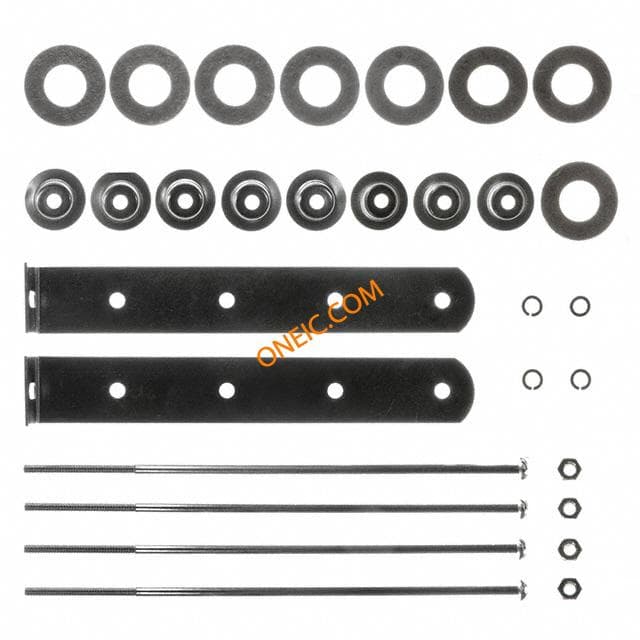

6129P-8 1-2E

Ohmite

Resistor Hardware 4-GANG MTG BRACKET MOUNTING BRACKET 4 RESISTOR MOUNTING BRACKET, 200/210/270 RES

¥166.3008

详情

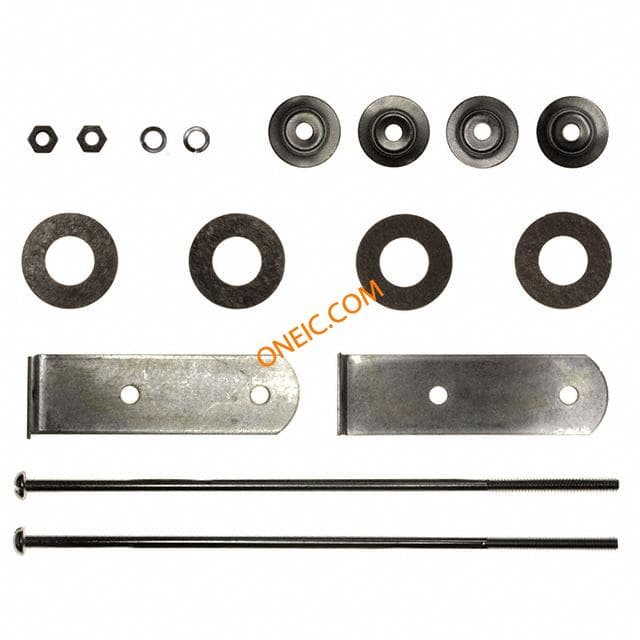

6127P-8 1-2E
