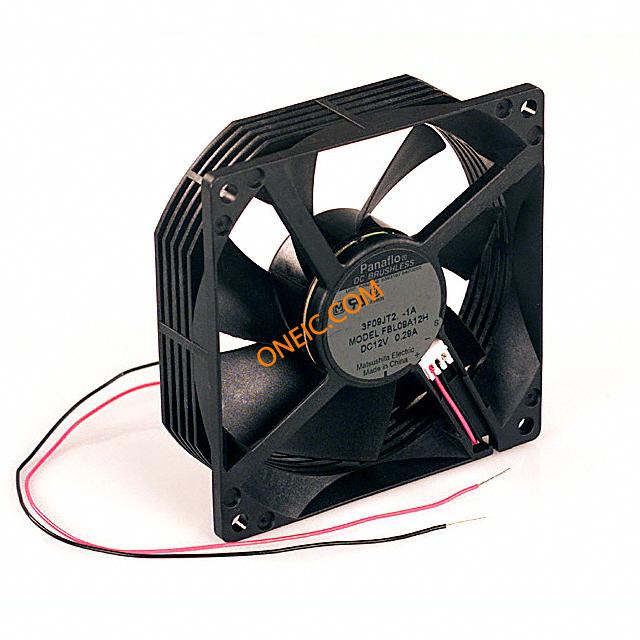

FBL09A12H1A

制造商	MinebeaMitsumi Inc.
描述	FAN 12VDC 2.7W 92MM
分类	硬件与散热解决方案直流风扇鼓风机

对参数有疑问？问 AI 助手

商业参数

交货时间	98 Days	子类别	Not Specified
标准包装数量	100

合规参数

RoHS

Lead free / RoHS Compliant

电气参数

噪声	35 dB	功率（瓦）	2.70W
电压范围	7 ~ 13.8VDC	额定电压	12VDC
最大额定电流	0.255A

机械参数

RPM	2950 RPM	重量	0.243 lb (110.22g)
风量	56.8 CFM (1.61m³/min)	风扇类型	Tubeaxial
端接方式	2 Wire Leads	轴承类型	Hydro-wave (HWB)
静压	0.169 in H2O (42.1 Pa)	尺寸/外形	Square - 92mm L x 92mm H x 25.5mm W

环境参数

额定寿命

50000 hrs @ 40°C

工作温度

14 ~ 158°F (-10 ~ 70°C)

文档与媒体

PDF 文档

FB Series Part Number Guide
