点击放大查看

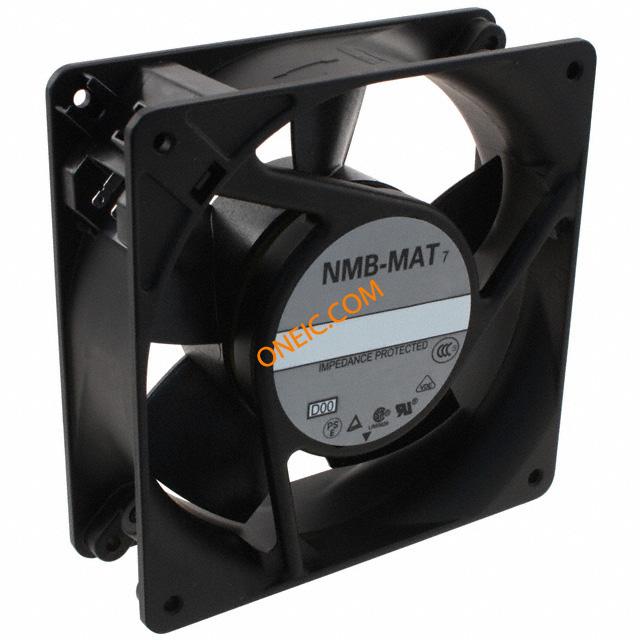

4715FS-12T-B50-D00
| 制造商 | MinebeaMitsumi Inc. |
| 描述 | FAN AC AXIAL 115V 119X38 3100RPM AC Fan Ball Bearing 115V 0.19A 14.4W 60Hz 3100RPM 110CFM 45dB Flange Mount FAN, 119X119X38MM, 115VAC |
| 分类 |
商业参数
| 交货时间 | 82 Days | 子类别 | Blowers and Fans |
| 标准包装数量 | 20 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 84145920 |
| 抗辐射加固 | No | 材料阻燃等级 | :UL94-V0 |
电气参数
| 噪声 | 45 dB | 转速 | Clockwise |
| 频率 | 60 Hz | 量程（°/s） | :3100rpm |
| 噪声系数 | 45 dB | 功率（瓦） | 14.4W |
| 额定功率 | 14.4 W | 额定电压 | 115VAC |
| 供电电流 | 0.19 A | 供电电压 | :115VAC |
| 供电类型 | :Terminals | 最大额定电流 | 0.190A |
| 平均正向功率 | :14.4W | ||
机械参数
| RPM | 3100 RPM | 深度 | 119 mm |
| 宽度 | :119mm | 高度 | 38 mm |
| 重量 | 1.2 lbs (544.3g) | 风量 | 110.0 CFM (3.11m³/min) |
| 直径 | Not Required mm | 风扇类型 | Tubeaxial |
| 材料（通用） | :Reinforced Plastic | 流量 (CFM) | :3.1m³/min |
| 流量（SCFM） | :110cu.ft/min | 端接方式 | 2 Terminals |
| 轴承类型 | Ball | 高度（最大） | :119mm |
| 端子类型 | :Terminals | 安装样式 | Flange |
| 压力（PSI） | :92.5Pa | 静压 | 0.370 in H2O (92.2 Pa) |
| 壳体材料 | Aluminum | 总长度 | 119 mm |
| 刀片材料 | Plastic | 框架材料 | Aluminum |
| 尺寸/外形 | Square - 119mm L x 119mm H x 38mm W | 外壳与棱镜材料 | :Aluminium Alloy |
产品信息
| 类型 | AC Fan | 系列 | :4715FS |
| 功能 | :AC | ||
环境参数
| 工作温度 | 14 ~ 158°F (-10 ~ 70°C) | 结工作温度 | 70C |
