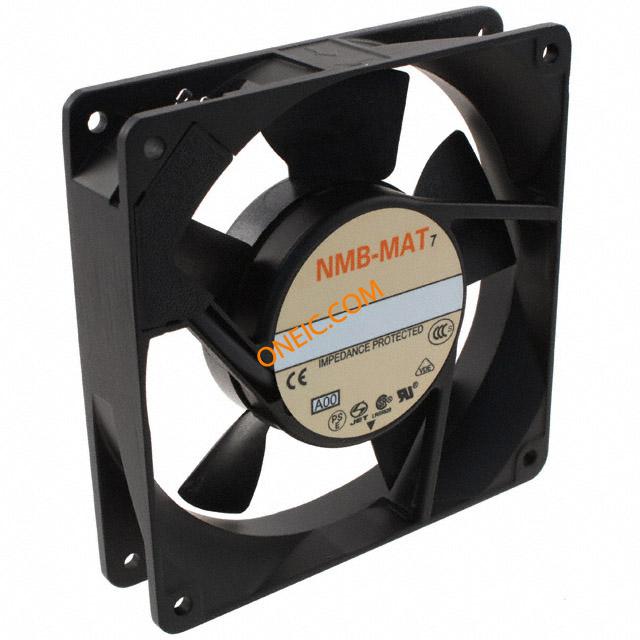

4710PS-23T-B20-A00
| 制造商 | |
| 描述 | AC Fan Ball Bearing 230V 0.06A/0.05A 9W/8W 50Hz/60Hz 1900RPM/2100RPM 49.4CFM/53CFM 29dB/30dB Flange Mount FAN AC AXIAL 230V 119X25 2100RPM |
| 分类 |
商业参数
| 交货时间 | 112 Days | 子类别 | Blowers and Fans |
| 标准包装数量 | 40 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 抗辐射加固 | No | ||
电气参数
| 噪声 | 30 dB | 转速 | Counter Clockwise |
| 频率 | 50/60 Hz | 最大功率 | 8W |
| 噪声系数 | 29/30 dB | 功率（瓦） | 8W |
| 额定功率 | 9/8 W | 额定电压 | 230VAC |
| 输出电流 | 0.06|0.05 | 供电电流 | 0.06/0.05 A |
| 最大额定电流 | 0.050A | 噪声系数（dB典型值 @ f） | 30 dB |
机械参数
| RPM | 2100 RPM | 尺寸 | Square - 119mm L x 119mm H x 25.5mm W |
| 深度 | 119 mm | 高度 | 25.4 mm |
| 重量 | 0.8 lb (362.87g) | 风量 | 53.0 CFM (1.50m³/min) |
| 直径 | Not Required mm | 风扇类型 | Tubeaxial |
| 端接方式 | Terminals | 轴承类型 | Ball |
| 安装类型 | Flange Mount | 安装样式 | Flange |
| 操作力 | 0.086 in H2O (21.5 Pa) | 静压 | 0.086 in H2O (21.5 Pa) |
| 壳体材料 | Aluminum | 总长度 | 119 mm |
| 刀片材料 | Polycarbonate (PC), Fiberglass Reinforced | 框架材料 | Aluminum |
| 最大压力 | 1.4inH2O|1.5inH2O | 尺寸/外形 | Square - 119mm L x 119mm H x 25mm W |
产品信息
| 类型 | AC Fan | 系列 | 4710PS |
环境参数
| 额定寿命 | 50000 hrs @ 25°C | 工作温度 | 14 ~ 158°F (-10 ~ 70°C) |
| 结工作温度 | 70C | ||
