NO2-4FDW
| 制造商 | |
| 描述 | Fiber Optic Connectors OPTICALCON CHASSIS OPTALLOY Chassis connector with hard Nickel plating, 4 solder contacts and 1 LC-Duplex feedthrough socket, waterproof according to IP65, front panel mount
The chassis connector acts as a "feed-through" allowing simplified installations by connecting a conventional LC-Duplex on the rear. It is built in the standard D size shell and features an automatic sealing cover for maximum dust and dirt protection and a Push-Pull locking mechanism for safe connection. Colored sealings are included to identify the fiber mode. Product Highlights:
Designed as feedthrough with automatic sealing shutter Shutter with silicone gasket protects optical connection from dust an dirt Accommodates standard LC connectors on the rear for simple installation Connection on the front side either by rugged opticalCON or standard LC connector Waterproof acc. to IP65 safety standard In case of limited space the chassis can be mounted without rubber gasket. IP rating for this is IP52. CONNECTOR, OPTICAL CON CHASSIS opticalconchassisconnector(IP65rated) |
| 分类 |
商业参数
| 产品 | LC Connectors | 标准包装规格 | 5 |
| 产品类别 | Fiber Optic Connectors | ||
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85367000 | ||
机械参数
| 重量 | 0.03 | 材料（通用） | :Zinc diecast (ZnAl4Cu1) |
| 基体材料 | Zinc Die Cast | 连接器类型 | Chassis Connector |
| 本体材料 | :Metal | 内径（直径） | :- |
| 光纤芯径 | 9 um / 50 um | ||
产品信息
| 工作模式 | Singlemode APC / Singlemode PC / Multimode | 类型 | Duplex |
| 系列 | :opticalCON | 光纤类型 | :Singlemode, Multimode |
环境参数
| 机械寿命 | End of Life: Scheduled for obsolescence and will be discontinued by the manufacturer. | 工作温度 | - 30 C to + 80 C |
文档与媒体
相关型号
NO2-4FDW-R
Neutrik
Fiber Optic Connectors OPTICALCON CHASSIS RUTHENIUM Conn LC Single Mode/Multimode Duplex F Solder Cup ST Panel Mount 0.5dB CONNECTOR, OPTICAL CON CHASSIS OPTICALCONDUOCHASSISRUTHENIUM,IP65RATED
NDO
Neutrik
Standard Circular Connector DUMMYPLUG FOR OPTICALCON RECEP Connector Accessories Dummy Plug The dummyPLUG NDO for Neutrik opticalCON receptacles enables you to simplify cabling. Unused inputs can be covered to avoid miss wiring and protect against dust additionally. DUMMY PLUG FOR OPTICAL CON CHASSIS dummyPLUG-foropticalCONreceptacles-rubber- Neutrik, 型 仿真插头, 使用于OpticalCON

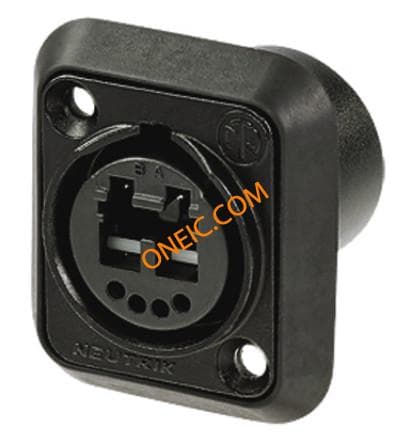

NO2-4FDW-A
