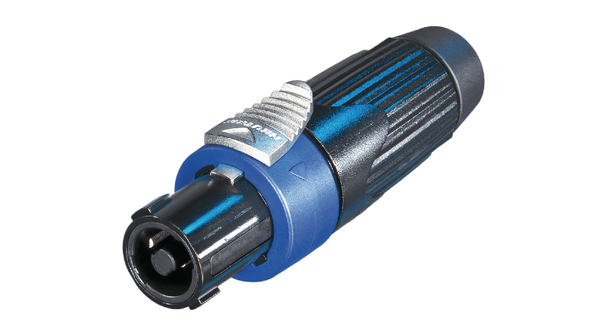

Loudspeaker Connectors 4C FEMAL CBLE MT BLK Conn Audio F 4 POS Solder ST Cable Mount 4 Terminal 1 Port 4 pole female cable connector, black-chrome metal housing, chuck type strain relief
The new STX Series is the next generation of 4 pole speakON connectors especially designed for amplifier-loudspeaker applications in harsh and demanding environments such as professional touring. The extremely rugged and durable STX Series feature an all metal housing and a built-in gasket providing weatherproof protection to IP54. The 4 pole version is now available as 4 gender system including male cable and female chassis connector. Product Highlights:
Current rating 40 Amp continuous, 50 Amp audio with 50% duty cycle Robust and durable all metal housing Sealing ring provides weatherproof IP54 rating Reinforced metal quick lock system for ease and precise locking Extra large solder contacts for up to 6mm² (AWG10) wires Mate with all available Speakon products Connector;UL94HBFlammability,Housing;9to16mm;4;40A;lt2Milliohms Cable socket Speakon® STX black 4P, NLT4FX-BAG, Neutrik
