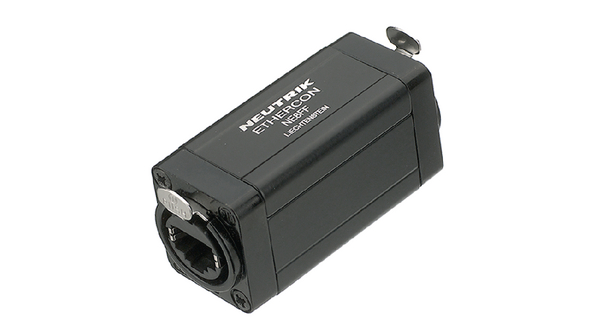

NE8FF

点击放大查看

NE8FF

制造商
描述
Modular Connectors / Ethernet Connectors CABLE COUPLER Conn RJ-45 Adapter F/F 8/8 POS ST Panel Mount 1/1 Port The etherCON Series is a ruggadized and lockable RJ45 connector system, optimized for proaudio, video and lightning network applications. The chassis connectors are shaped to fit into standardized panels out of the entertainment industry.The D-Series offers the most rugged design of the etherCON series and is perfectly suitable for panel mount and the installer market. Feedthrough coupler for cable extensions. Product Highlights: Accommodates NE8MC* or any standard RJ45 plug Approved latch lock system AdapterEtherconcabletocable Feed-through coupler RJ 45 8, NE8FF, Neutrik
分类
对参数有疑问?问 AI 助手

商业参数

产品Modular Jacks产品类别Modular Connectors / Ethernet Connectors

合规参数

RoHSRoHS Compliant

电气参数

额定电压50 V极数8
最大额定电流1.5 A

机械参数

尺寸63 x 31 x 26 mm长度63
重量2.328081 oz接触镀层Gold
触头材料Bronze壳体材料Polybutylene Terephthalate (PBT)
外部壳体颜色black

产品信息

设计类型Pass-through receptacle连接器性别Female
系列EtherCon®USOC 编码RJ45
端口数1性能类别Cat 5e

环境参数

工作温度- 30 C to + 80 C
