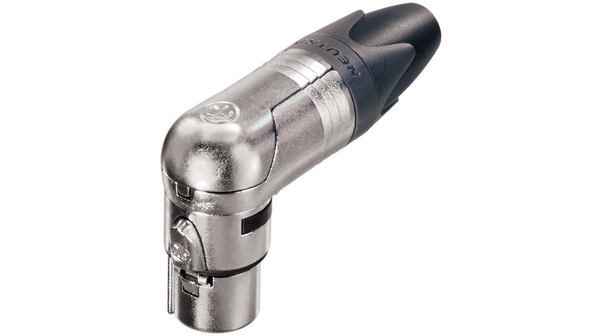

点击放大查看
NC6FRX
| 制造商 | |
| 分类 |
对参数有疑问？问 AI 助手
Product
| 标题 | NC6FRX | 连接器性别 | female |
| 连接类型 | XLR | ||
Material
| Boot | Polyurethan | Shell | Zinc diecast (ZnAl4Cu1) |
| Insert | Polyamide (PA 6.6 30 % GR) | Contacts | Brass (CuZn39Pb3) |
| Shell plating | Nickel | Strain relief | Polyacetal (POM) |
| Contact plating | 2 µm Ag | Locking element | Zinc diecast (ZnAl4Cu1) / Ck 67 (spring) |
Electrical
| Rated voltage | < 50 V | Contact resistance | ≤ 3 mΩ |
| Dielectric strength | 1,5 kVdc | Insulation resistance | > 2 GΩ (initial) |
| Rated current per contact | 7,5 A | Capacitance between contacts | ≤ 7 pF |
Mechanical
| Wiring | Solder contacts | Lifetime | > 1000 mating cycles |
| Wiresize | max. 18 AWG | Cable O.D. | 3.5 - 8.0 mm |
| Locking device | Latch lock | Insertion force | ≤ 20 N |
| Withdrawal force | ≤ 20 N | ||
Environmental
| Flammability | UL 94 HB | 可焊性 | Complies with IEC 68-2-20 |
| Protection class | IP 40 | Temperature range | -30 °C to +80 °C |
| Standard compliance | IEC 61076-2-103 | ||
