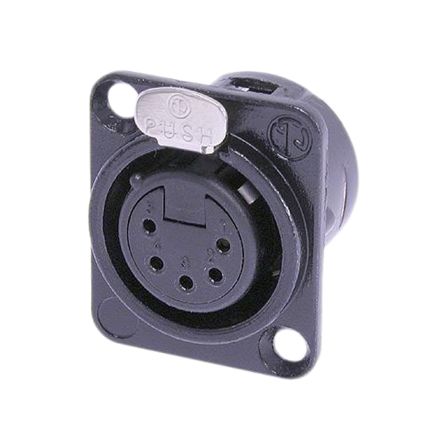

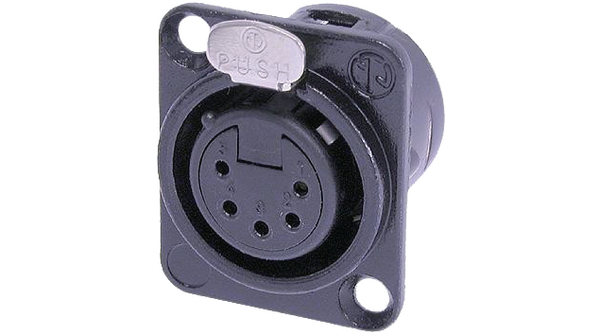

NC5FD-L-B-1
| 制造商 | |
| 分类 |
对参数有疑问？问 AI 助手
Product
| 标题 | NC5FD-L-B-1 | 连接器性别 | female |
| 连接类型 | XLR | ||
Material
| Shell | Zinc diecast (ZnAl4Cu1) | Insert | Polyamide (PA66) |
| Contacts | Brass (CuZn39Pb3) | Shell coating | Black KTL |
| Locking element | Steel Ck67 | Locking element plating | Nickel |
Electrical
| Rated voltage | < 50 V | Contact resistance | ≤ 5 mΩ |
| Dielectric strength | 1,5 kVdc | Insulation resistance | > 10 GΩ (initial) |
| Rated current per contact | 7,5 A | Capacitance between contacts | ≤ 7 pF |
Mechanical
| Wiring | Solder contacts | Lifetime | > 1000 mating cycles |
| Wiresize | max. 18 AWG | Chassis shape | D |
| Locking device | Latch lock | Insertion force | ≤ 20 N |
| Withdrawal force | ≤ 20 N | ||
Environmental
| Approvals | UL | Flammability | UL 94 V-0 |
| 可焊性 | Complies with IEC 68-2-20 | Protection class | IP 40 |
| Temperature range | -30 °C to +80 °C | Standard compliance | IEC 61076-2-103 |
