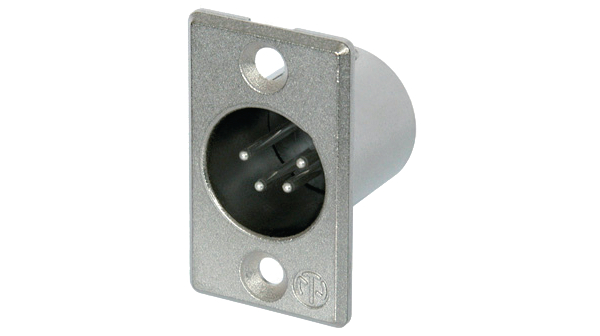

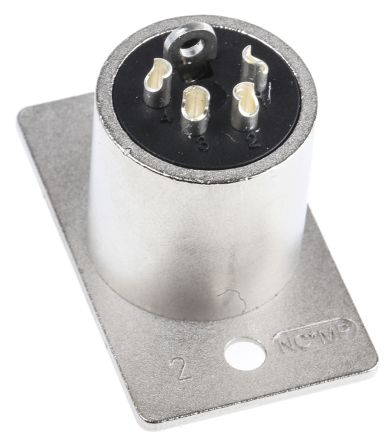

NC4MP
| 制造商 | |
| 分类 |
对参数有疑问？问 AI 助手
Product
| 标题 | NC4MP | 连接器性别 | male |
| 连接类型 | XLR | ||
Material
| Shell | Zinc diecast (ZnAl4Cu1) | Insert | Polyamide (PA 6.6 30 % GR) |
| Contacts | Brass (CuZn39Pb3) | Shell plating | Nickel |
| Contact plating | 2 µm Ag over 2 µm Ni | Locking element | Steel Ck67 |
Electrical
| Rated voltage | < 50 V | Contact resistance | ≤ 5 mΩ |
| Dielectric strength | 1,5 kVdc | Insulation resistance | > 10 GΩ (initial) |
| Rated current per contact | 10 A | Capacitance between contacts | ≤ 7 pF |
Mechanical
| Wiring | Solder contacts | Lifetime | > 1000 mating cycles |
| Wiresize | max. 16 AWG | Chassis shape | P |
| Locking device | Latch lock | Insertion force | ≤ 20 N |
| Withdrawal force | ≤ 20 N | Mounting direction | Front mounting |
Environmental
| Flammability | UL 94 HB | 可焊性 | Complies with IEC 68-2-20 |
| Protection class | IP 40 | Temperature range | -30 °C to +80 °C |
| Standard compliance | IEC 61076-2-103 | ||
