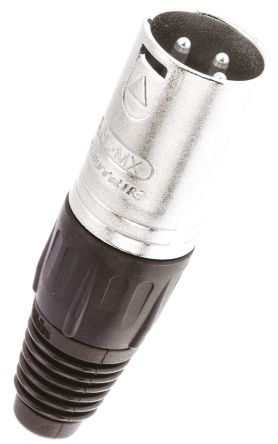

NC3MX

制造商	Neutrik AG
分类	连接器解决方案圆形连接器微型圆形连接器

对参数有疑问？问 AI 助手

Product

标题	NC3MX	连接器性别	male
连接类型	XLR

Material

Boot	Polyurethan	Shell	Zinc diecast (ZnAl4Cu1)
Insert	Polyamide (PA66)	Contacts	Brass (CuZn39Pb3)
Shell plating	Nickel	Strain relief	Polyacetal (POM)
Contact plating	2 µm Ag	Locking element	Zinc diecast (ZnAl4Cu1)

Electrical

Rated voltage	< 50 V	Contact resistance	≤ 3 mΩ
Dielectric strength	1,5 kVdc	Insulation resistance	> 10 GΩ (initial)
Rated current per contact	16 A	Capacitance between contacts	≤ 4 pF

Mechanical

Wiring	Solder contacts	Lifetime	> 1000 mating cycles
Wiresize	max. 14 AWG	Cable O.D.	3.5 - 8.0 mm
Locking device	Latch lock	Insertion force	≤ 20 N
Withdrawal force	≤ 20 N

Environmental

Approvals	UL	Flammability	UL 94 V-0
可焊性	Complies with IEC 68-2-20	Protection class	IP 40
Temperature range	-30 °C to +80 °C	Standard compliance	IEC 61076-2-103

文档与媒体

PDF 文档

1699401.pdf

在线文档

nc3mx

相关型号

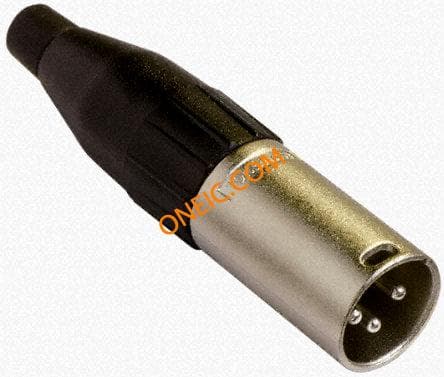

AC3MM
