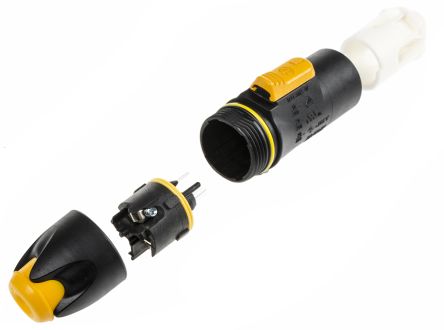

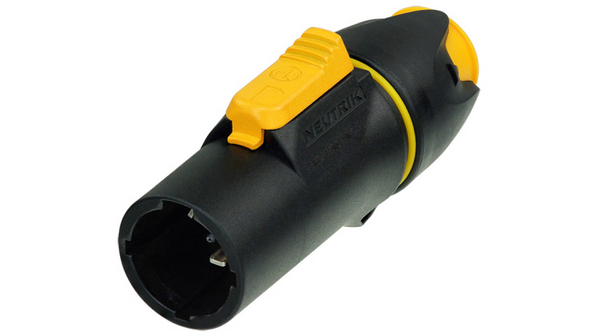

NAC3MX-W
| 制造商 | |
| 分类 |
对参数有疑问？问 AI 助手
Product
| 标题 | NAC3MX-W | ||
Material
| Shell | Polyamide (PA 6.6 30 % GR) | Insert | Polyamide (PA 6.6 30 % GR) |
| Contacts | CuNi1Si0.2 | Strain relief | Polyacetal (POM) |
| Contact plating | 2 µm Ag | Locking element | ZuAl4Cu1 |
Electrical
| Rated voltage | 250 V ac | Contact resistance | ≤ 3 mΩ |
| Dielectric strength | 4 kVdc / 2.8 kVac | Insulation resistance | 0,1 GΩ (after damp heat test IEC 68-2-30) |
| Rated current per contact | 16 A rms (USA: 20 A) | Number of electrical contacts | 2 + PE |
Mechanical
| Lifetime | > 5000 mating cycles | Wiresize | 12 AWG |
| Cable O.D. | 6 - 12 mm | ||
Environmental
| Flammability | UL 94 V-0 | Protection class | IP 65 (mated) |
| Temperature range | -30 °C - +80 °C | ||
