点击放大查看

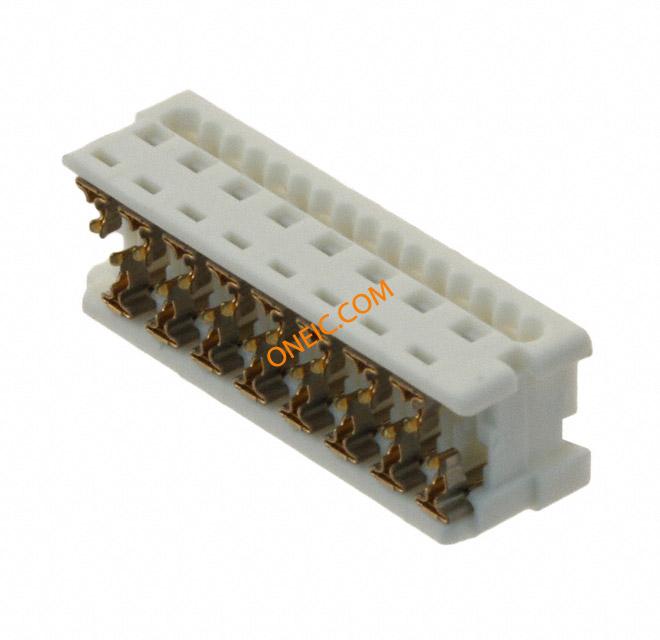

90327-3316
| 制造商 | Molex, LLC |
| 描述 | Conn IDC Connector RCP 16 POS 2.54mm IDT RA Cable Mount Bag CONN RECPT IDT 16POS 1.27MM GOLD 16 way IDT housing,1.27mm pitch low prof Headers & Wire Housings PICOFLEX 16P HSG LOPRO IDT AU Molex PICOFLEX 系列 2行 16路 1.27mm节距 直角 电缆安装 母 IDC 连接器 |
| 分类 |
商业参数
| 商标名 | Picoflex | 零件号别名 | 0903273316 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 1000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 额定电压 | 250 V | 最大额定电流 | 1.2A |
机械参数
| 颜色 | White | 间距 | 0.100" (2.54mm) |
| 包装方式 | Bulk | 导线类型 | Ribbon Cable |
| 导线线规 | 26-28 AWG | 方向 | 直角 |
| 端接方式 | IDT | 触头类型 | Female Socket |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Receptacle |
| 接触镀层 | Palladium-Nickel | 排数 | 2 |
| 触头材料 | Phosphor Bronze | 壳体材料 | PET |
| 端接排数 | IDC | 电缆端接方式 | IDC |
| 端接样式 | IDC | 触点数 | 16 |
| 位数 | 16 | 接触镀层厚度 | 24µin (0.60µm) |
产品信息
| 连接器性别 | Female | 系列 | 90327 |
| 产品特性 | Feed Through | CAD图纸 | 3D CAD Model |
| 产品子类型 | Receptacles / Sockets - Housings | 基础产品编号 | 90327 |
环境参数
| 工作温度 | +105°C | ||
相关型号
0903250016
molex
Conn Ribbon Cable Connector HDR 16 POS 1.27mm Solder ST Thru-Hole Bag CONN HEADER 16POS 1.27MM TIN Connector: wire-board; PicoFlex; socket; male; 16; tinned; 1.2A
0691271001
molex
Connector Accessories Bench Press Tool Semi-Automatic Bench Press PB14 For 90327 Connectors, 4 to 26 Circuit PB14 PNEUMATIC TERMINATOR
0691271024
molex
Connector Accessories Semi Automatic Bench Press Tool with Auto De Reeling Semi-Automatic Bench Press PB14 With Auto De-Reeling For 90327 Connectors PB14 DETAPE-110 VOLTS

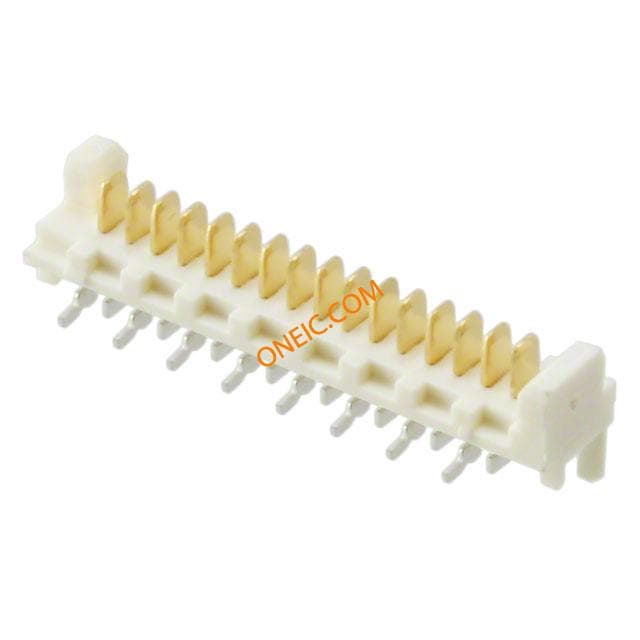

90814-3816
molex
Conn Ribbon Cable Connector HDR 16 POS 2.54mm Solder ST SMD Tube CONN HEADER 16PS 1.27MM SMD GOLD Header 1.27mm,SMT, vert, low pro, 16w Headers & Wire Housings 1.27MM 16P VERT HDR LO-PRO SMT,AU HEADER, 1.27MM, 16WAY Molex PICOFLEX 系列 16路 1.27mm节距 公 IDC 连接器 , 表面安装

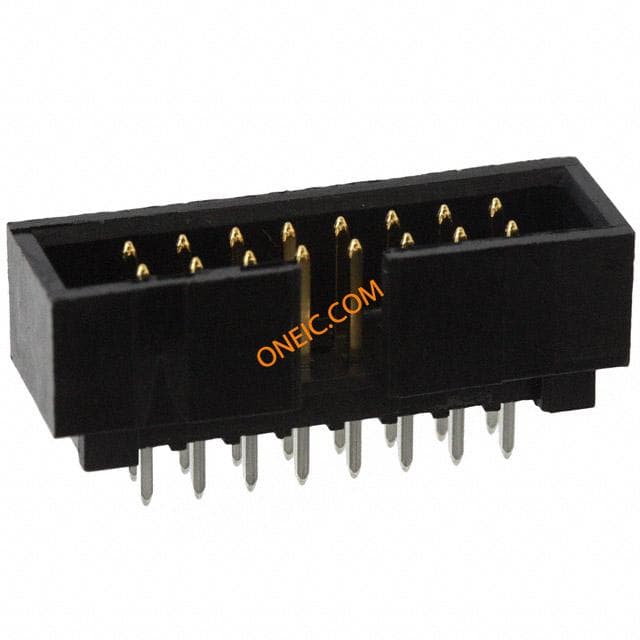

0702461601
Molex
Conn Shrouded Header HDR 16 POS 2.54mm Solder ST Thru-Hole Tray CONN HEADER 16POS .100 VERT GOLD

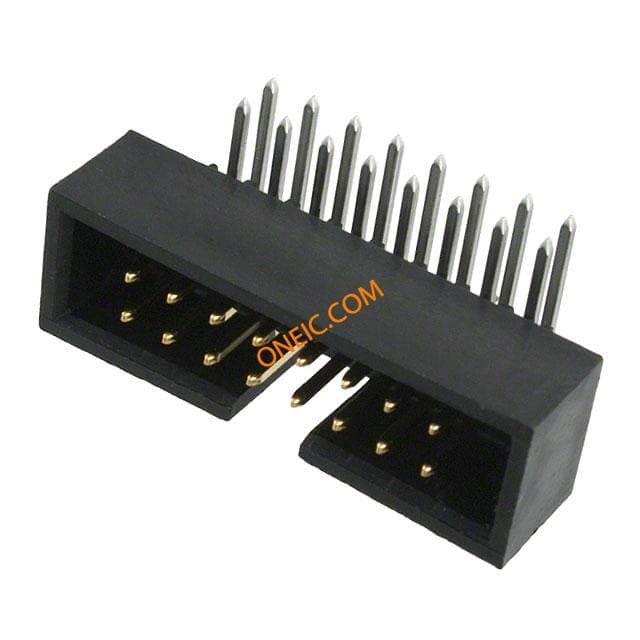

0702471651
Molex
Conn Shrouded Header HDR 16 POS 2.54mm Solder RA Thru-Hole Tray CONN HEADER 16POS .100 R/A 15AU
90325-3016
molex
Conn Ribbon Cable Connector HDR 16 POS 1.27mm Solder ST Thru-Hole Bag CONN HEADER 16POS 1.27MM GOLD Header 1.27mm, RA, low pro,16w,pcb peg Headers & Wire Housings 1.27mm PF Hdr LoPro Polz Blk .76Au 16Ckt Molex PICOFLEX 系列 16路 1.27mm节距 公 IDC 连接器 , 通孔
0690081090
Molex
Handtool For 90327, 90584 and 91577 Picoflex Connectors, 4-26 Circuit TOOL HAND PICO FLEX Tool: for crimping; connectors; Application: MX-90327,MX-90584

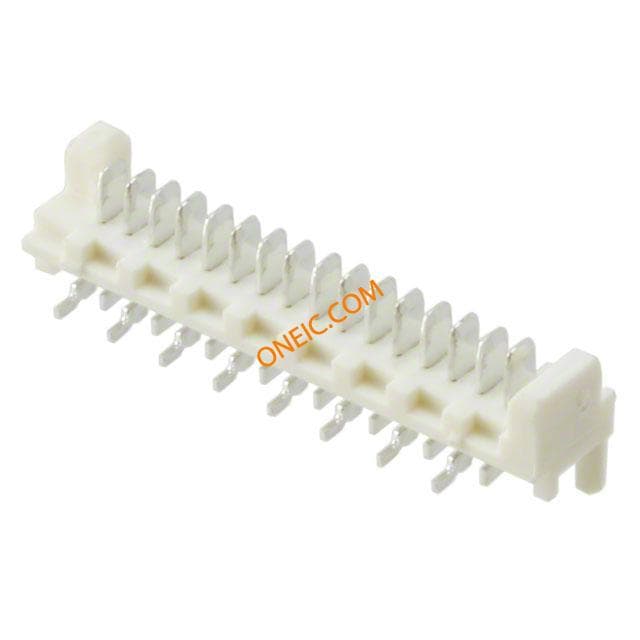

0908140816
Molex
Conn Ribbon Cable Connector HDR 16 POS 2.54mm Solder ST SMD Tube CONN HEADER 16POS 1.27MM SMD TIN

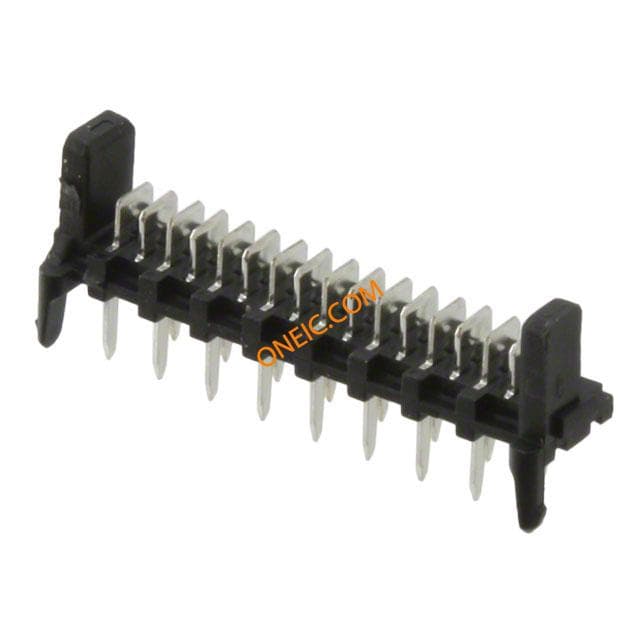

90325-9016
Molex Connector Corporation
CONN HEADER 16POS 1.27MM TIN T/H Header 1.27mm, vert, low pro,16w Headers & Wire Housings PICOFLEX 16P HDR SN R/A LP W/PCB PEGS Conn Ribbon Cable Connector HDR 16 POS 1.27mm Solder ST Thru-Hole Tube HEADER, 1.27MM, 16WAY Molex PICOFLEX 系列 16路 1.27mm节距 公 IDC 连接器 , 通孔

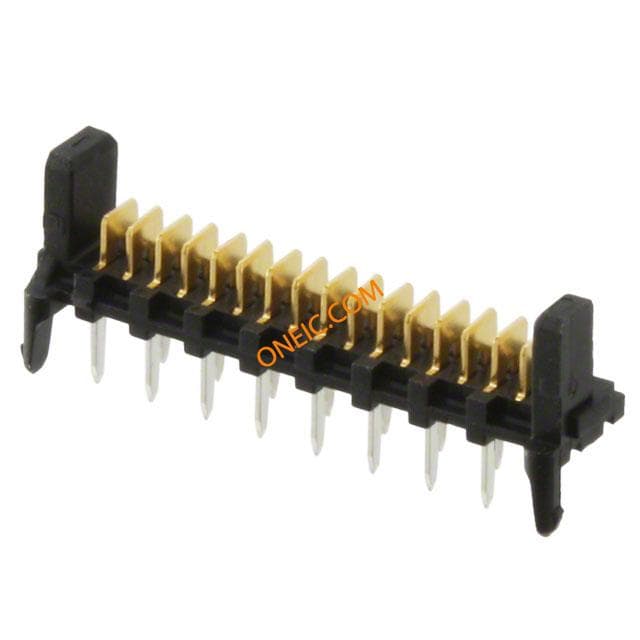

90325-7016
