点击放大查看
90327-0326
| 制造商 | Molex, LLC |
| 描述 | Conn IDC Connector RCP 26 POS 2.54mm IDT RA Cable Mount Bag CONN RECEPT IDT 26POS 1.27MM TIN 26 way IDT housing,1.27mm pitch low prof Headers & Wire Housings PICOFLEX 26P HSG LOPRO IDT SN CONNECTOR, PICOFLEX, 26WAY Female connector 26P, 90327-0326, Molex Molex PICOFLEX 系列 2行 26路 1.27mm节距 直角 电缆安装 母 IDC 连接器 |
| 分类 |
商业参数
| 商标名 | Picoflex | 零件号别名 | 0903270326 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 2500 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 材料阻燃等级 | :UL94V-0 | ||
电气参数
| 量程（°/s） | :MOLEX - Picoflex 90327 Series | 额定电压 | 250 V |
| 接触电阻 | :10mohm | 击穿电压 | :750V |
| 最大额定电流 | 1.2A | 触点额定电流 | :1.2A |
机械参数
| 颜色 | White | 间距 | 2.54 mm |
| 宽度 | :31.75mm | 重量 | 0.002 |
| 材料（通用） | :Polyester | 包装方式 | Bulk |
| 导线类型 | Ribbon Cable | 导线线规 | 26-28 AWG |
| 端接方式 | IDT | 触头类型 | Female Socket |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Receptacle |
| 接触镀层 | Tin Over Nickel | 排数 | 2 |
| 触头材料 | Phosphor Bronze | 壳体材料 | PET |
| 电缆端接方式 | IDC | 端接样式 | IDC |
| 连接器颜色 | :White | 触点数 | 26 |
| 接触件端接 | :IDC / IDT | 位数 | 26 |
| 接触镀层厚度 | 78.7µin (2.00µm) | 线规或范围 - AWG | :28AWG |
| 第一连接器安装类型 | :Cable | ||
产品信息
| 类型 | IDC Connector | 连接器性别 | RCP |
| 系列 | 90327 | 产品特性 | Feed Through |
| CAD图纸 | 3D CAD Model | 产品子类型 | Receptacles / Sockets - Housings |
环境参数
| 工作温度 | +105°C | ||
相关型号

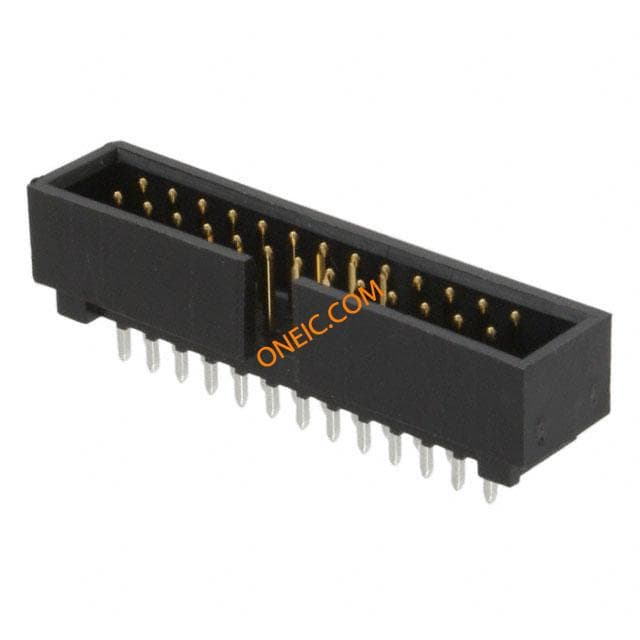

0702462601
molex
Conn Shrouded Header HDR 26 POS 2.54mm Solder ST Thru-Hole Tray CONN HEADER 26POS .100 VERT GOLD
0691271001
molex
Connector Accessories Bench Press Tool Semi-Automatic Bench Press PB14 For 90327 Connectors, 4 to 26 Circuit PB14 PNEUMATIC TERMINATOR

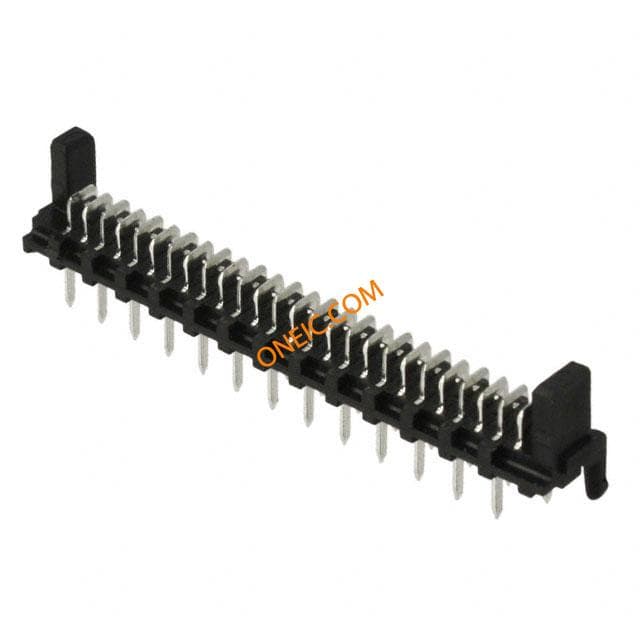

0903250026
molex
Conn Ribbon Cable Connector HDR 26 POS 1.27mm Solder ST Thru-Hole Bag CONN HEADER 26POS 1.27MM TIN Connector: wire-board; PicoFlex; socket; male; 26; tinned; 1.2A sale
0691271024
molex
Connector Accessories Semi Automatic Bench Press Tool with Auto De Reeling Semi-Automatic Bench Press PB14 With Auto De-Reeling For 90327 Connectors PB14 DETAPE-110 VOLTS

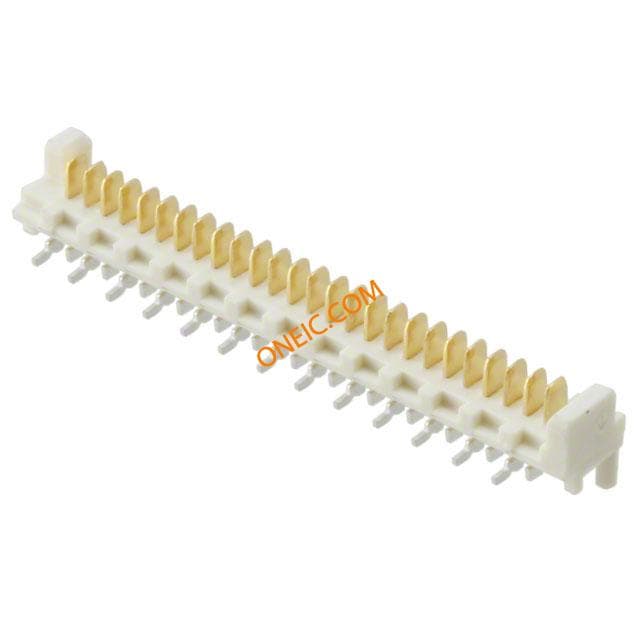

0908143826
molex
Conn Ribbon Cable Connector HDR 26 POS 2.54mm Solder ST SMD Tube CONN HEADER 26PS 1.27MM SMD GOLD
70247-2651
molex
Conn Shrouded Header HDR 26 POS 2.54mm Solder RA Thru-Hole Tray CONN HEADER 26POS .100 R/A 15AU Headers & Wire Housings CGrid Hdr Shrd R.A / /OStdf .38AuLF 26Ckt

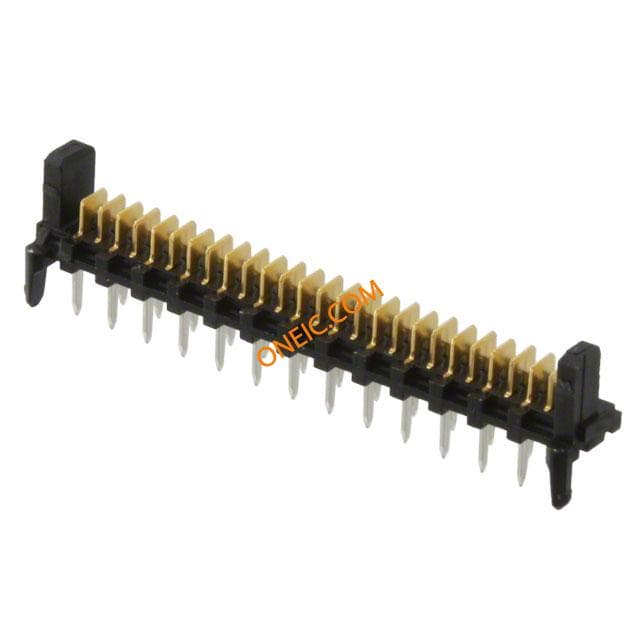

90325-7026
molex
Conn Ribbon Cable Connector HDR 26 POS 1.27mm Solder ST Thru-Hole Tube CONN HEADER 26PS 1.27MM GOLD T/H Headers & Wire Housings PICOFLEX 26P HDR AU R/A LP W/PCB PEGS

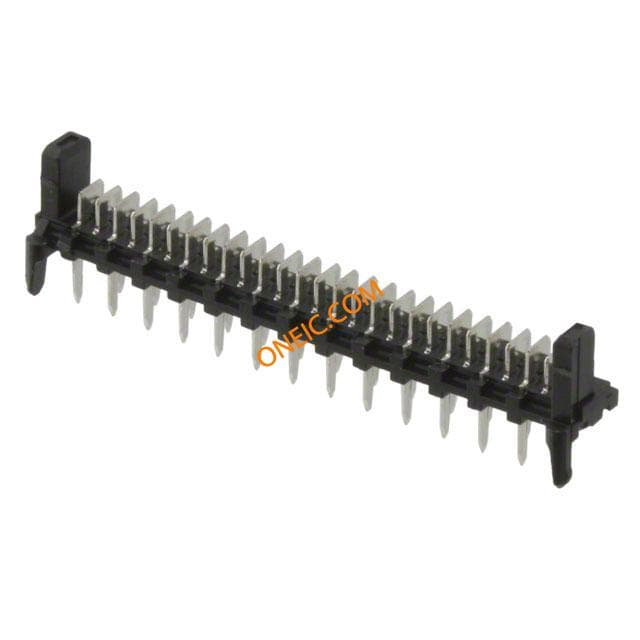

90325-9026
molex
Conn Ribbon Cable Connector HDR 26 POS 1.27mm Solder ST Thru-Hole Tube CONN HEADER 26POS 1.27MM TIN T/H Headers & Wire Housings PICOFLEX 26P HDR SN R/A LP W/PCB PEGS
69008-1090
molex
Connector Accessories Picoflex Connector IDT Hand Tool Crimpers HAND CRIMP 04-26P PICOFLEX Hand tool-Picoflex PF-50 IDT receptacles HAND TOOL, IDT Handtool, 69008-1090, Molex Molex HANDTOOL 系列 IDT 压接工具 , 适用于28 → 26 AWG 线规格
62100-6000
molex
PICOFLEX EXTRACTION TOOL Hand Tools PICOFLEX EXTRACTION TOOL Punches & Dies PICOFLEX EXTRACTION TOOL TOOL, PICOFLEX, EXTRACTION Dismantle tool, 62100-6000, Molex
0690081090
Molex
Handtool For 90327, 90584 and 91577 Picoflex Connectors, 4-26 Circuit TOOL HAND PICO FLEX Tool: for crimping; connectors; Application: MX-90327,MX-90584
70247-2652
molex
Conn Shrouded Header HDR 26 POS 2.54mm Solder RA Thru-Hole Tray CONN HEADER 26POS .100 R/A 30AU Headers & Wire Housings CGrid Hdr Shrd R.A / /OStdf .76AuLF 26Ckt
90814-0826
Molex Connector Corporation
CONN HEADER 26POS 1.27MM SMD TIN Header 1.27mm,SMT, vert, low pro, 26w Headers & Wire Housings 1.27MM 26P VERT HDR LO-PRO SMT SN Conn Ribbon Cable Connector HDR 26 POS 2.54mm Solder ST SMD Tube HEADER, PICOFLEX, SMT, 26WAY Molex PICOFLEX 系列 26路 1.27mm节距 公 IDC 连接器 , 表面安装

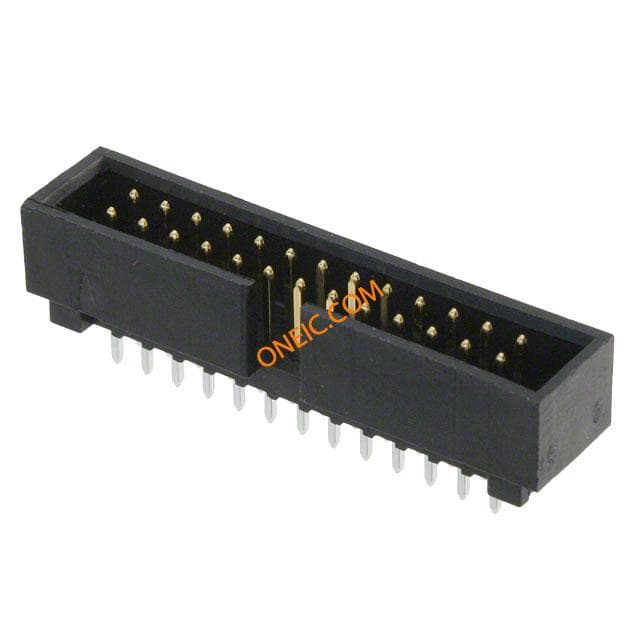

0702462602
