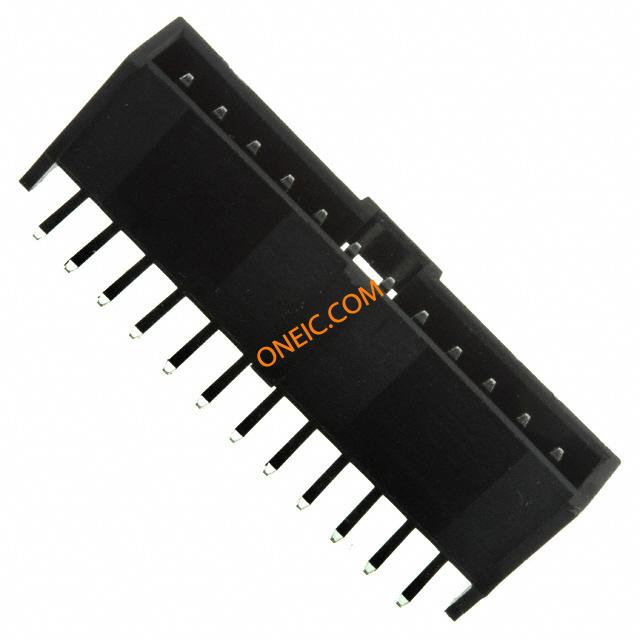

点击放大查看
90136-2112
| 制造商 | Molex, LLC |
| 描述 | Conn Shrouded Header HDR 12 POS 2.54mm Solder RA Thru-Hole Tray CONN HEADER 12POS .100" R/A TIN Molex 90136 Series 2.54mm Pitch 12 Way 1 Row Right Angle PCB Header, Solder Termination, 3A Headers & Wire Housings 2.54MM CGRIDIII HDR 12P R/A SR SHRD TIN Molex C-GRID III 系列 2.54mm节距 12路 (1排) 直角 PCB 针座, 焊接端接, 3A , 通孔 |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 商标名 | C-GRID | 零件号别名 | 0901362112 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Trays |
| 工厂包装数量 | 720 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 额定电压 | 350 V | 最大额定电流 | 3A |
机械参数
| 颜色 | Black | 间距 | 0.100" (2.54mm) |
| 包装方式 | Tray | 方向 | 直角 |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 安装类型 | Through Hole, Right Angle | 连接器类型 | Header, Shrouded |
| 接触镀层 | Tin | 紧固类型 | Latch Holder |
| 排数 | 1 | 触头材料 | Brass |
| 壳体材料 | Polyester | 端接排数 | 焊接 |
| 端接样式 | Through Hole | 触点数 | 12 |
| 位数 | 12 | 接触长度 - 配合 | 0.266" (6.75mm) |
| 接触镀层厚度 | 118.1µin (3.00µm) | ||
产品信息
| 类型 | Shrouded Header | 系列 | 90136 |
| 覆盖范围 | 覆盖 | CAD图纸 | 3D CAD Model |
| 产品子类型 | Headers | 基础产品编号 | 90136 |
| 加载位置数 | All | ||
