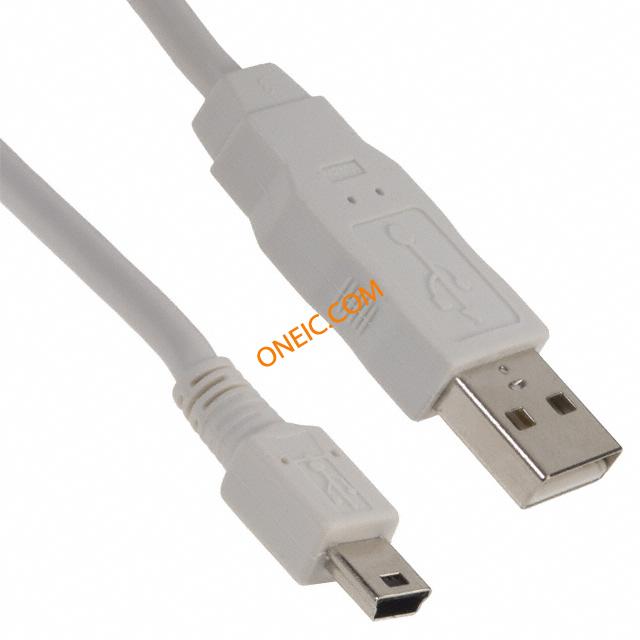

88732-8600
| 制造商 | Molex, LLC |
| 描述 | Cable Assemblies USB A / MINI B ASSY 1M LENGTH WHITE Cable Assembly Data 1m 28AWG 4 POS USB to 5 POS USB M-M Bag CABLE USB 2.0 A-MINI B 1M WHITE USB standard A - mini B cable,1m 1A USB Cables / Firewire Cables USB A / MINI B ASSY 1M LENGTH WHITE CABLE, USB A PLUG TO USB MINI B PLUG, 1M Molex USB 系列 白色 USB 电缆组件, 公 USB A 至 插入式 Mini USB B |
| 分类 |
商业参数
| 产品 | USB Assemblies | 零件号别名 | 0887328600 |
| 产品类别 | Cable Assemblies | 标准包装数量 | 1 |
| 工厂包装数量 | 240 | ||
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85369010 | ||
电气参数
| 额定电压 | 30 V | 最大额定电流 | 1 A |
| 导体数量 | 4 | 最小输入电压 | 30V |
机械参数
| 颜色 | White | 长度 | 1 m |
| 重量 | 0.047 | 包装方式 | Bag |
| 屏蔽 | Shielded | 电缆类型 | Data |
| 导线线规 | 28 | 电缆长度 | :3.2ft |
| 线缆护套颜色 | :White | 第一连接器 | USB Type A |
| 第二连接器 | USB Type B, Mini | 连接器类型 | 4POS USB |
| 接触镀层 | Gold | 引脚数 | 4 |
| 连接器颜色 | White | 线规或范围 - mm² | :28AWG |
| 第二连接器位数 | 5 | ||
产品信息
| USB | USB 2.0 | 类型 | USB 2.0 |
| 连接器性别 | Male / Male | 系列 | 88740 |
| 功能 | USB On-The-Go (OTG) Shielded I/O Cable Assembly, USB A-to-Mini B, USB 2, 1 m Length, White | 配置 | A Male to Mini B Male |
| 规格说明 | USB 2.0 | ||
