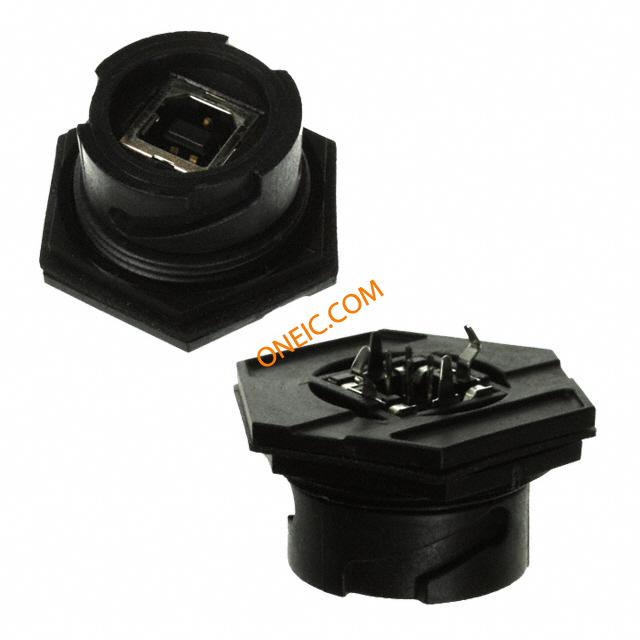

84730-0001
| 制造商 | |
| 描述 | USB Connectors USB-B PNLMT PCB RCPT CONN USB B RCPT BULKHEAD PCB RECEPTACLE PANEL/PCB USB TYPE B |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 产品 | USB Type B Connectors | 零件号别名 | 0847300001 |
| 产品类别 | USB Connectors | 标准包装数量 | 1 |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | RoHS Compliant | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 额定电压 | 300 VAC | 供电电压 | USB |
| 最大额定电流 | 1 A | 绝缘电阻 | 1000 MOhms |
机械参数
| 颜色 | Black | 包装方式 | Bag |
| 安装类型 | Vertical | 连接器类型 | Industrial USB Type A Receptacle |
| 接触镀层 | Gold | 安装样式 | Panel |
| 触头材料 | Copper Alloy | 端接样式 | Pin |
| 触点数 | 4 | ||
产品信息
| 连接器性别 | Female | 产品特性 | Full Shield |
| 端口数 | 1 | ||
环境参数
| 机械寿命 | Obsolete | 工作温度 | - 40 C to + 60 C |
相关型号

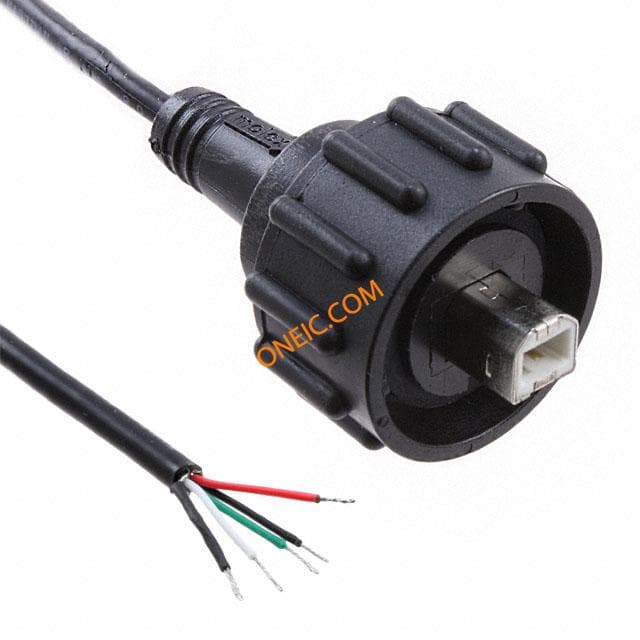

0847281002
