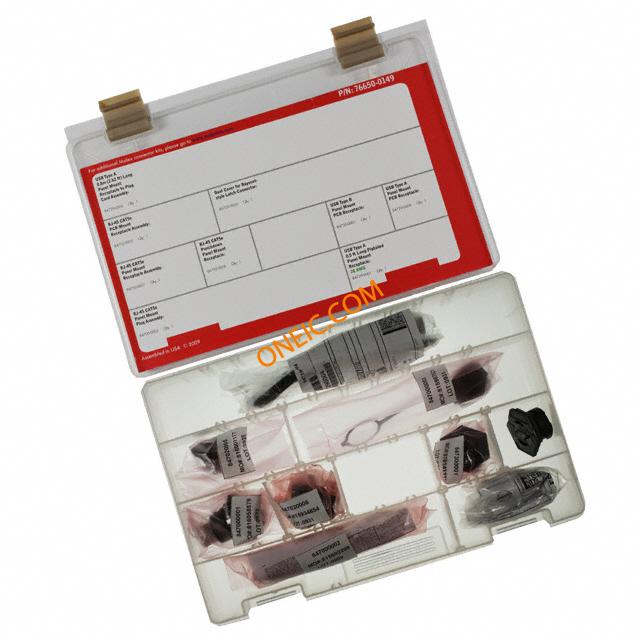

76650-0149
| 制造商 | |

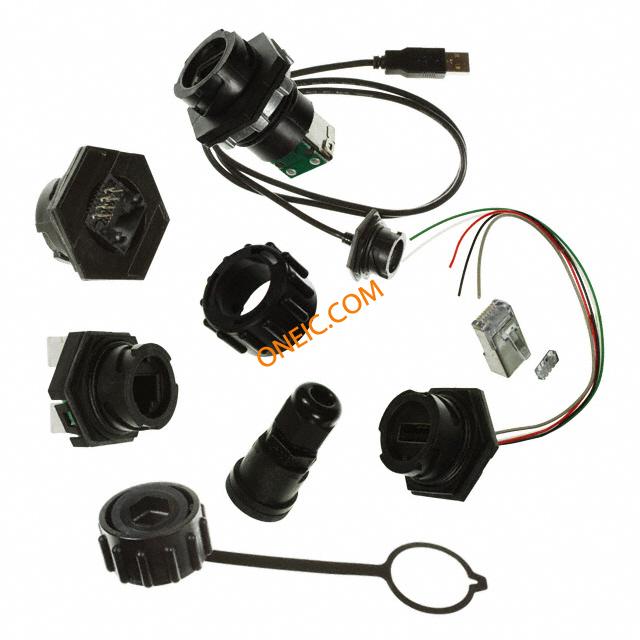

| 描述 | Kit For Cables, Plugs, Vertical Receptacles USB Connectors INDUST INTERFACE KIT KIT USB TYPE A AND B INTERFACE SEALED USB & RJ-45 INDUSTRIAL CONNECTOR& CABLE KIT |
| 分类 |
商业参数
| 零件号别名 | 0766500149 | 产品类别 | USB Connectors |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 电压 | 30, 125 V | 额定电压 | 30 V, 125 V |
| 最大额定电流 | 1 A , 1.5 A | ||
机械参数
| 包装方式 | Bulk | 安装类型 | Vertical |
| 连接器类型 | USB | 安装样式 | Plug |
产品信息
| 连接器性别 | Male / Female | 系列 | 76650 |
| 值 | 9 pcs - Assorted Plug, Receptacle | 产品特性 | USB Kits |
| 套件类型 | USB, IEEE-1394 (Firewire), DVI, HDMI | 制造商全称 | 76650 |
| 配置 | Wire-to-Board, Wire-to-Wire | ||
