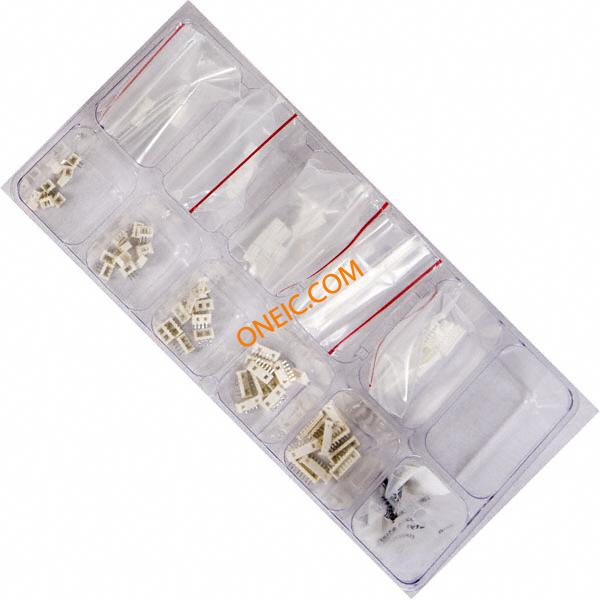

76650-0112
| 制造商 | Molex, LLC |
| 描述 | COMPONENT KITS, WIRE TO BOARD KIT 2,3,4,6,8POS 0.5-2A THROUGH HOLE MOUNTING RECEPTACLE, VERTICAL HEADER 2MM PITCH 125V 24-30 WIRE SIZE KIT CONN MICRO-LATCH ASSORTED Headers & Wire Housings MICRO-LATCH KIT VERT 2MM Kit Description:Friction Lock Vertical Header and ReceptacleKit Category:Wire to BoardSolution:Off the BoardPackaging:Clamshell: 12.75" by 6"Num. Pieces:200 MICRO-LATCH CONNECTOR KIT FRICTION LOCKVERT HEADER & RECEPT |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 商标名 | Micro-Latch | 标准包装规格 | 1 |
| 零件号别名 | 0766500112 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 电压 | 125 V | 额定电压 | 125 V |
| 最大额定电流 | 500 mA | ||
机械参数
| 间距 | 2 mm | 包装方式 | Plastic Box |
| 导线线规 | 30-24 | 安装类型 | Vertical |
| 连接器类型 | Header and Receptacle | 端接样式 | SMD, Through Hole |
产品信息
| 类型 | Micro-Latch Connector Kit | 系列 | 76650 |
| 值 | 200 pcs - Assorted 2 ~ 4, 6, 8 Circuit Header, Housing, 30 ~ 24 AWG Crimp Terminals | 套件类型 | Rectangular - Contact, Header, Housing |
| 制造商全称 | 76650 | 产品子类型 | Connector Kits |
| 配置 | Wire-to-Board | 电路数 | 2, 3, 4, 6, 8 |
