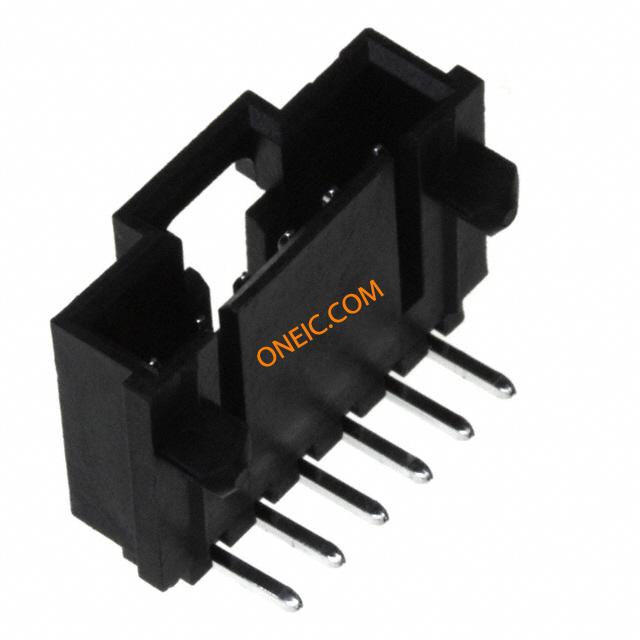

点击放大查看
70555-0005
| 制造商 | Molex, LLC |
| 描述 | Conn Shrouded Header HDR 6 POS 2.54mm Solder RA Thru-Hole Tube CONN HEADER 6POS .100 R/A TIN Headers & Wire Housings R/A HDR TRI-PEG 6P low profile CGRID SL SRD HDR RA 120 TPG TIN 6CKT |
| 分类 |
商业参数
| 商标名 | SL | 零件号别名 | 0705550005 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 1120 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 额定电压 | 250 V | 最大额定电流 | 3 A |
机械参数
| 颜色 | Black | 间距 | 2.54 mm |
| 包装方式 | Tube | 端接方式 | Solder |
| 触头类型 | Male Pin | 安装类型 | Through Hole, Right Angle |
| 连接器类型 | Header, Shrouded | 接触镀层 | Tin |
| 排数 | 1 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Polycyclohexylenedimethylene Terephthalate (PCT) | 端接样式 | Through Hole |
| 触点数 | 6 | 位数 | 6 |
| 接触长度 - 配合 | 0.240" (6.10mm) | 接触镀层厚度 | 150µin (3.81µm) |
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 系列 | 70555 | 产品特性 | Board Guide |
| 产品子类型 | Headers | 加载位置数 | All |
文档与媒体
