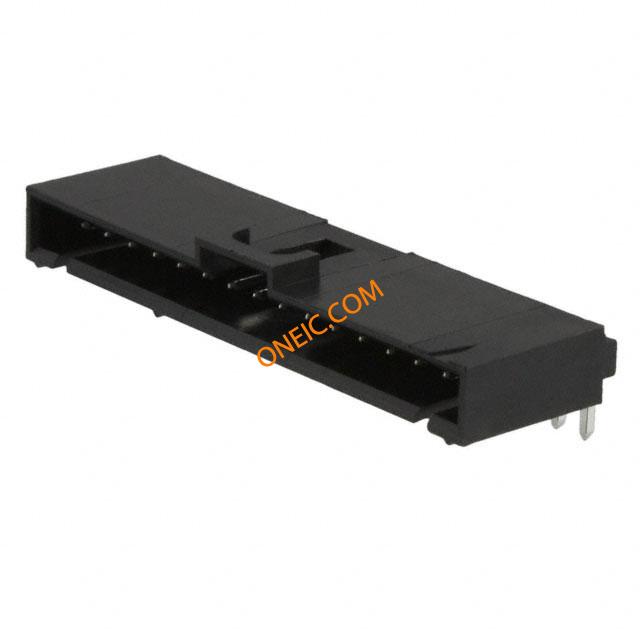

70553-0050
| 制造商 | Molex, LLC |
| 描述 | Conn Shrouded Header HDR 16 POS 2.54mm Solder RA Thru-Hole Tube CONN HEADER 16POS .100 R/A TIN Headers & Wire Housings CGrid SL Srd Hdr 120 Hdr 120 RA Tin 16Ckt |
| 分类 |
商业参数
| 商标名 | SL | 零件号别名 | 0705530050 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 480 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
机械参数
| 颜色 | Black | 间距 | 0.100" (2.54mm) |
| 包装方式 | Tube | 端接方式 | Solder |
| 触头类型 | Male Pin | 安装类型 | Through Hole, Right Angle |
| 连接器类型 | Header, Shrouded | 接触镀层 | Tin |
| 排数 | 1 | 触点数 | 16 |
| 位数 | 16 | 接触长度 - 配合 | 0.240" (6.10mm) |
| 接触镀层厚度 | 150µin (3.81µm) | ||
产品信息
| 类型 | Shrouded | 系列 | 70553 |
| 产品子类型 | Headers | 加载位置数 | All |
文档与媒体
相关型号
14-60-0162
molex
Conn IDC Connector F 16 POS 2.54mm IDT ST Cable Mount Tube CONN IDC 16POS .100 TIN 24AWG
14-56-2161
molex
Conn IDC Connector F 16 POS 2.54mm IDT ST Cable Mount Tube CONN IDC 16POS .100 GOLD 24AWG Headers & Wire Housings CGrid SL IDT Opt A 15 SAu 16Ckt

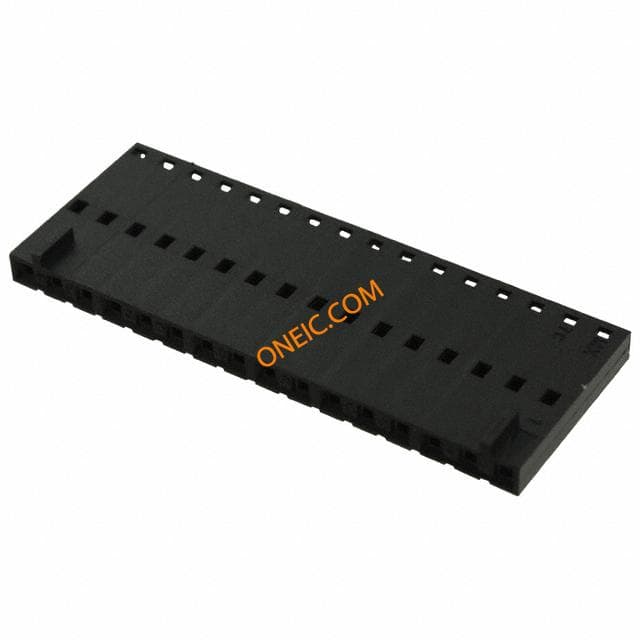

0050579216
Molex
Conn Housing RCP 16 POS 2.54mm Crimp ST Bag CONN HSG 16POS .100 SINGLE VER C

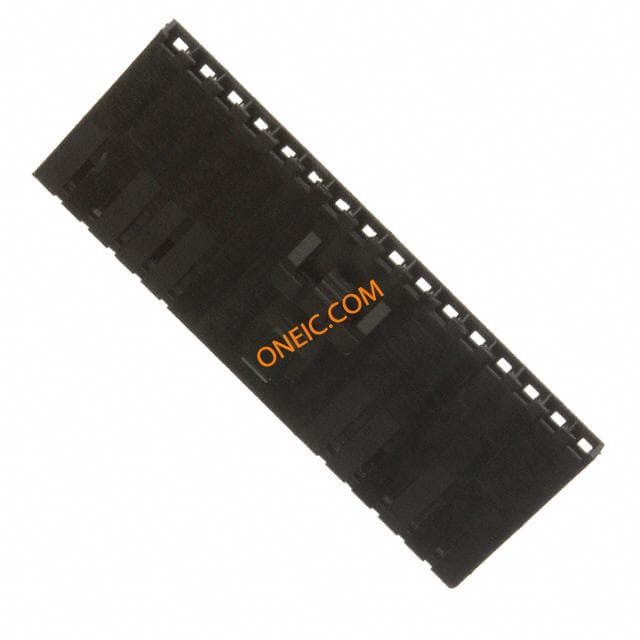

0050579416
